Precision engineered Control Head Cable for smooth operation in demanding applications. Trim-to-length design with stainless steel innermember.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

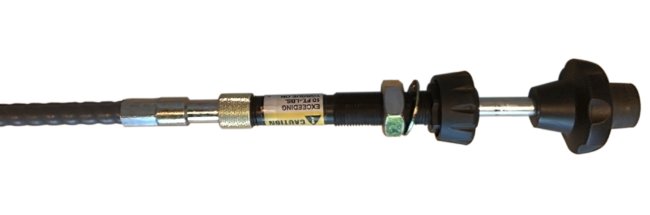

The Heavy-Duty Control Head Cable is designed for precision control applications, offering a factory assembled, trim-to-length design with a stainless steel solid wire innermember. With up to 3" of travel, a minimum 5" bend radius, and a robust 20 lb pull load rating, this cable ensures smooth and reliable operation. Featuring a Micro Adjust control head type, Low Friction conduit, and options for Stainless Steel End Rod and Support Tube, this cable meets the stringent requirements of industrial and government users.

Product Specifications

Specifications Cable Travel

1 " | 2 " | 3 "

Specifications Conduit Size

Light Duty

Specifications Conduit Type

Low Friction

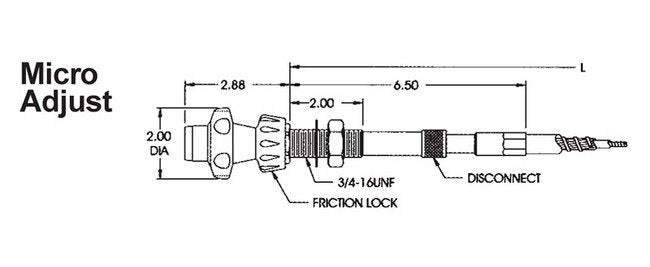

Specifications Control Head Type

Micro Adjust

Specifications Micro Adjust Only Cable Options

D - Disconnect Feature | F - Friction Lock Accessory

Specifications Output End Fittings

2 - Threaded Twist On | 3 - Grooved Twist On | 4 - Threaded Swaged | 5 - Grooved Swaged | 6 - Closed End Swaged

Specifications Seal Options

5 - Improved Model 5 Wiper Seal is Standard on Low Friction - EXT & Utility | 6 - Model 6 Wiper Seal, Optional on All Controls

Specifications Stainless Steel Options

Stainless Steel End Rod, Support Tube

CAGE

0T9L4

NAICS

332510

PSC

4030
