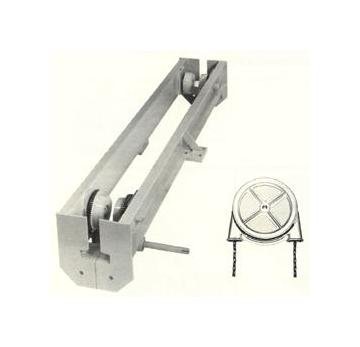

Heavy Duty Crane End Truck Kits
Heavy Duty Crane End Truck Kits
SKU:REL-9c3567
Reliable precision and durability for your crane system. Smooth operation with heavy-duty components.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

The Heavy Duty Crane End Truck Kits are designed for reliable overhead crane systems, offering unparalleled precision and durability. Crafted with alloy carbon steel, these kits feature precision machine-cut wheel gearing with pinion gears supported by self-aligning lubricated ball bearings for quiet operation. The large pocket wheel drive ensures ease of operation, complete with a chain guard for safety. With heavy-duty cam follower bearings for smooth crane operation and reduced wear, these kits also boast steel channel frame construction with reinforced axle bosses for stability. The split truck design allows for quick and easy installation on various runway systems, making them a versatile choice for industrial applications.
Product Specifications
Specifications Adjustable For Standard Beam Sizes
S8 to S15 x 42.9
Specifications Capacity
2 Tons
Specifications Crane Wheel Diameter
5 inches
Specifications Hand Wheel Diameter
11 inches
Specifications Max Wheel Load Per Pair
3400 lbs.
Specifications Model
Model UCP and UCG Crane Kits
Specifications Net Weight Per Pair
310 lbs.
Specifications Wheel Base
5'-0"
Standard Features 0
Wheel Gearing : Alloy carbon steel precision machine cut, sized and proportioned with large pitch diameter pinion gears having generous face width for long life and quiet operation. Pinion gears are supported between self-aligning lubricated and sealed ball bearing pillow blocks - no overhung gearing. Hand Wheel Ddive : Large diameter pocket wheel for ease of operation complete with chain guard and sufficient alloy hand chain for a standard 8'-0" operating hand chain drop. Side Roller Guidance : Heavy duty cam follower bearing's provide smooth non-skewing crane operation plus reduced crane wheel and runway rail wear. Side roller setting requires 1/4" plus or minus runway rail alignment to insure smooth crane operation. Truck Frames : Fabricated from steel channel shapes with heavy axle reinforcement bosses, precision drilled bridge girder connection pads and protective front plates with rail safety lugs all jig assembled to insure accurate wheel alignment for true running operation. Split truck design allows quick easy crane erection on either open end or closed end runway systems. Hand Geared UCG : All parts shown are furnished. Push Type UCP : All plain wheels - no gearing. Complete dimensional data furnished upon request and with each order.
