The Heavy-Duty DC Clutches and Brakes offer superior performance for industrial applications. With a favorable torque to size ratio, low inertia friction disc assembly, and optional split friction discs, these elements ensure efficient operations and minimal downtime. Designed for Power Presses, Tension Brakes, and Emergency Stop Brakes on Unwind Stands, they boast long-wearing PolyPak seals for durability and self-lubrication. Manufactured by Eaton-Airflex, these air-actuated elements are compact yet powerful, meeting the demands of high torque applications with ease.

Product Specifications

Features 0
Favorable torque to size ratio.DC type elements are physically smaller than most other type clutches and brakes with the same torque capacity.Low inertia friction disc assembly.Reduces the overall inertia that must be started or stopped.Optional split friction discs.Allows removal of friction discs without disturbing other components of drive system in mid-shaft element arrangement.Long wearing, self lubricating PolyPak* seals.Eliminates premature twisting failure and requires no external lubrication.
Note 0
Basic part number only. Gear not included.Some high torque applications of three and four disc elements require additional support on the cylinder side of the unit. Contact your local Airflex representative for more details.
Specifications Actuation
Air (DC)

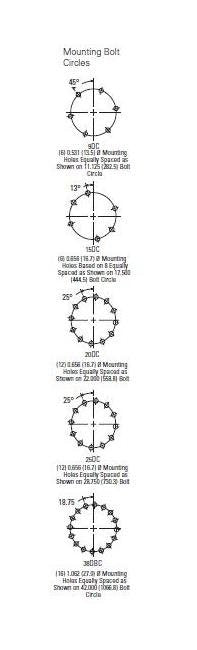

Specifications Bolt Circle
9.13 in | 232 mm

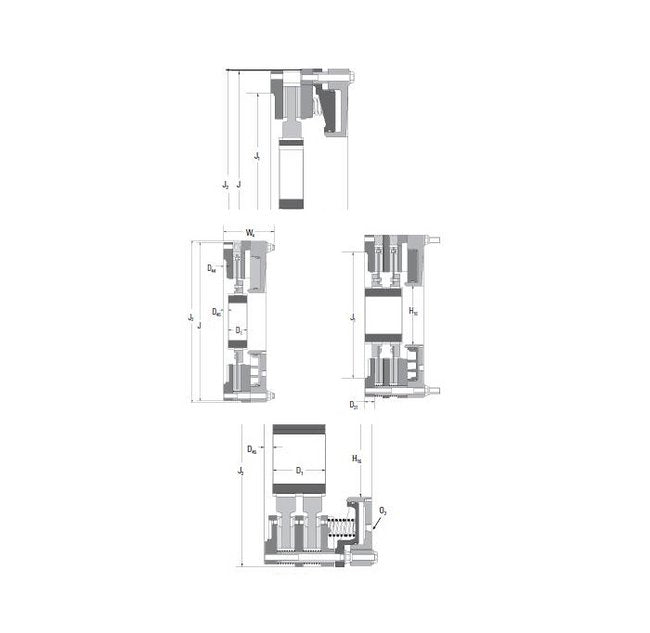

Specifications Dimension D1
8.25 in | 210 mm
Specifications Dimension D31
1.50 in | 38 mm
Specifications Dimension D44
0.38 in | 10 mm
Specifications Dimension D46
0.00 in | 0 mm
Specifications Dimension H16
8.50 in | 216 mm
Specifications Dimension J
23.250 in | 590.6 mm
Specifications Dimension J1
18.250 in | 463.5 mm
Specifications Dimension J2
23.82 in | 605 mm

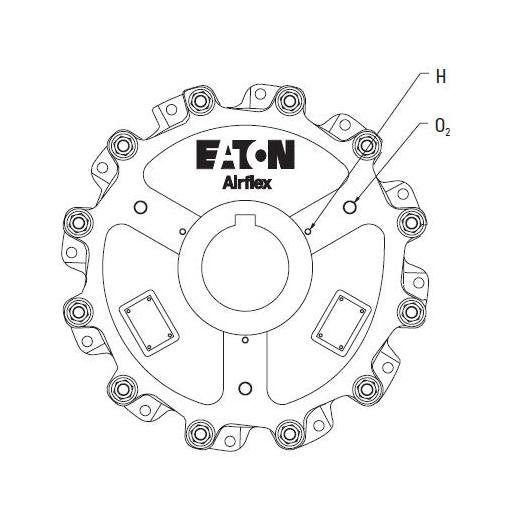

Specifications Dimension O2
1/2-14 NPT
Specifications Disc And Gear Weight
213 lb | 97 kg
Specifications Disc Gear Inertia
49 lb·ft² | 2.06 kg·m²
Specifications Dynamic Torque Rating At 75 Psi 52 Bar
231000 lb·in | 26080 Nm
Specifications Gear Part Number
416304
Specifications Housing Inertia
126 lb·ft² | 5.31 kg·m²
Specifications Housing Weight
359 lb | 163 kg
Specifications H Number
3
Specifications H Size
3/8-16NC-2
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Bore
5.56 in | 141 mm
Specifications Maximum Speed Of Disc
1850 rpm
Specifications Maximum Speed Of Element
850 rpm
Specifications Minimum Bore
4.88 in | 124 mm
Specifications Number Of Friction Discs
3
Specifications Size
320DC
Specifications W4
14.63 in | 372 mm
Where Used 0
Power PressesTension BrakesEmergency Stop Brakes on Unwind Stands
