Heavy Duty Diamond Pad Eye - Stainless Steel, 316 Grade, Suncor, 3-1/4 in

Heavy Duty Diamond Pad Eye - Stainless Steel, 316 Grade, Suncor, 3-1/4 in

SKU:STA-906a14

Heavy Duty Diamond Pad Eye - Heavy-duty 316 stainless steel pad eye with 2000 lb WLL, ideal for institutional and industrial use.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Heavy Duty Diamond Pad Eye - Stainless Steel, 316 Grade, Suncor, 3-1/4 in

Heavy Duty Diamond Pad Eye - Stainless Steel, 316 Grade, Suncor, 3-1/4 in

$29.99

Quantity: 1

Claim Your Seller Account

Heavy Duty Diamond Pad Eye - Stainless Steel, 316 Grade, Suncor, 3-1/4 in

Heavy Duty Diamond Pad Eye - Stainless Steel, 316 Grade, Suncor, 3-1/4 in

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

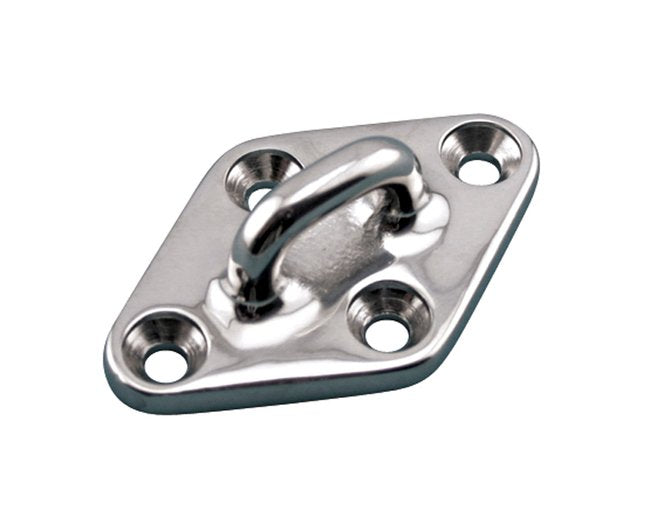

Designed for heavy-duty applications, the Heavy Duty Diamond Pad Eye offers exceptional load distribution when paired with the heavy-duty back plate. Precision cast from 316 stainless steel, this pad eye ensures maximum corrosion resistance and durability. Install it effortlessly using 1/4" or 5/16" fasteners. With a Working Load Limit (WLL) of 2000 lb, this pad eye meets stringent institutional procurement standards, making it ideal for industrial and government applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Ready to Grow Without Cash Flow Constraints?

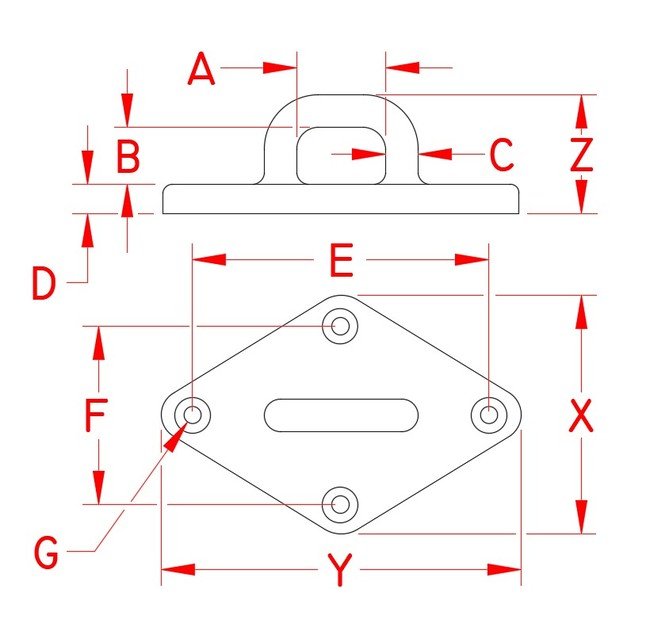

Product Specifications

Specifications Dimension A
0.76 in
Specifications Dimension B
0.40 in
Specifications Dimension C
0.31 in
Specifications Dimension D
0.26 in
Specifications Dimension E
2.37 in
Specifications Dimension F
1.23 in
Specifications Dimension G
0.22 in
Specifications Dimension X
1.94 in
Specifications Dimension Y
3.25 in
Specifications Dimension Z
1.02 in
Specifications Fabrication Type
Precision Cast
Specifications Fastener
1/4 in
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
3-1/4 in
Specifications Weight
0.3 lb
Specifications Working Load Limit Wll
2000 lb
CAGE
1CXX6
NAICS
332510
PSC
5340
