Heavy-Duty Die Springs
Heavy-Duty Die Springs
Premium Heavy-Duty Die Springs for medium-duty applications. Strong, reliable, and compliant with industrial standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Heavy-Duty Die Springs
$29.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Die Springs
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

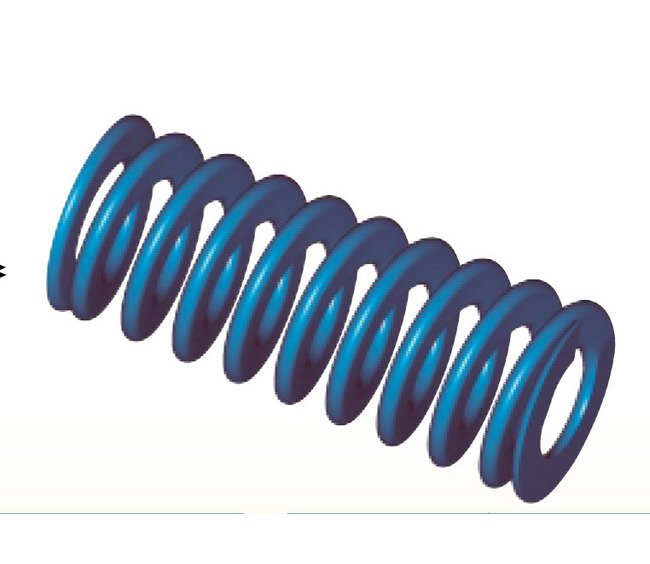

The Heavy-Duty Die Springs are designed for medium-duty applications, offering exceptional strength and reliability. With an Outside Hole Diameter of 1-1/2 in, Inside Rod Diameter of 3/4 in, and a Free Length of 4-1/2 in, these springs provide a Load at 1/10" Deflection of 23.0 lb and a Maximum Operating Deflection Load of 414.0 lb. Their maximum deflection is 1.80 in, and they come in a striking Blue color. Manufactured by DMS, these Die Springs meet the rigorous standards required for industrial and institutional applications.
Product Specifications
Specifications Color
Blue
Specifications Free Length
4-1/2 in
Specifications Inside Rod Diameter
3/4 in
Specifications Load At 110 Deflection
23.0 lb
Specifications Manufacturer
DMS
Specifications Maximum Operating Deflection
1.80 in
Specifications Maximum Operating Deflection Load
414.0 lb
Specifications Outside Hole Diameter
1-1/2 in
Specifications Spring Type
Die Springs
