Heavy Duty DIN 6796 Conical Spring Washers

Heavy Duty DIN 6796 Conical Spring Washers

SKU:SPR-4f47dc

High-quality DIN 6796 Conical Spring Washers for secure bolted connections, ideal for thermal expansion/vibrations.

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

Heavy Duty DIN 6796 Conical Spring Washers

Heavy Duty DIN 6796 Conical Spring Washers

$14.99

Quantity: 1

Claim Your Seller Account

Heavy Duty DIN 6796 Conical Spring Washers

Heavy Duty DIN 6796 Conical Spring Washers

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Heavy Duty DIN 6796 Conical Spring Washers are specifically engineered for reliable bolting applications that are susceptible to thermal expansion, contraction, or vibrations, ensuring secure fastening. Crafted from high-quality Carbon Steel C1060-C1075 with Zinc Chromate finish, these washers provide a robust solution for bolted connections. Available in various material options to suit different environments, including 316SS for marine and corrosive settings, and Stainless Steel (18-8) for less aggressive environments. With precise specifications meeting industry standards, these washers offer moderate loading for small deflections in tight spaces, making them ideal for applications like bolted flanges.

Product Specifications

Specifications Country Of Origin
-
Specifications Depth
1.654 Inch
Specifications Free Height Mm
5.80 mm
Specifications Height
0.228 Inch

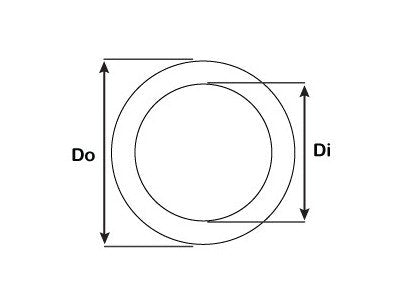

Specifications Inside Diameter Reference Mm
19.00 mm
Specifications Material
Carbon Steel C1060-C1075, Zinc Chromate
Specifications Min Free Height For Set Mm
5.10 mm
Specifications Outside Diameter Reference Mm
42.00 mm
Specifications Thickness Mm
4.50 mm
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.1069 pounds
Specifications Width
1.654 Inch
