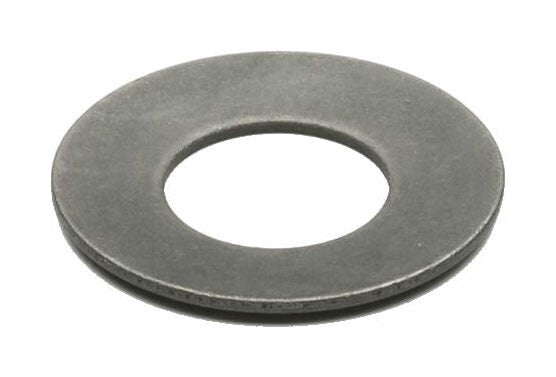

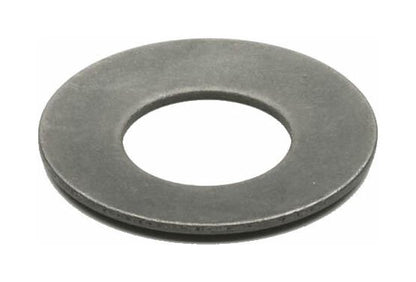

Heavy Duty DIN 6796 Conical Washers - 316 Stainless Steel
Heavy Duty DIN 6796 Conical Washers - 316 Stainless Steel
SKU:SPR-5112ec
Premium DIN 6796 Conical Washers in 316 Stainless Steel for secure bolted connections. Ideal for heavy-duty applications.
Regular price
$15.99
Regular price
Sale price
$15.99
Unit price
per
Initiate Order
Heavy Duty DIN 6796 Conical Washers - 316 Stainless Steel
$15.99
Quantity: 1
Claim Your Seller Account
Heavy Duty DIN 6796 Conical Washers - 316 Stainless Steel
$15.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DIN 6796 Conical Washers are meticulously crafted for heavy-duty bolting applications, ensuring secure fastenings in scenarios susceptible to thermal expansion, contraction, or vibrations. Designed to align with metric fasteners, these washers excel in bolted connections such as flanges. Available in 316 Stainless Steel for marine, chemical, and corrosive environments, these washers offer optimal performance and longevity. With precise measurements and various finish options, these washers provide moderate loading for applications with limited axial space.
Product Specifications
Specifications Country Of Origin
-
Specifications Depth
1.142 Inch
Specifications Free Height Mm
3.95 mm
Specifications Height
0.156 Inch

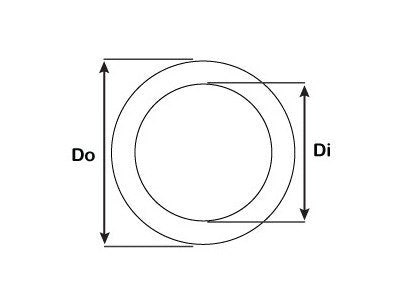

Specifications Inside Diameter Reference Mm
13.00 mm
Specifications Material
316 Stainless Steel
Specifications Min Free Height For Set Mm
3.68 mm
Specifications Outside Diameter Reference Mm
29.00 mm
Specifications Thickness Mm
3.00 mm
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.0341 pounds
Specifications Width
1.142 Inch
