Heavy-Duty Double Horizontal Sheave Assemblies
Heavy-Duty Double Horizontal Sheave Assemblies
SKU:RIG-8a7620
Heavy-duty sheave assemblies for 4000 lbs. lifting/pulling capacity. Easy-to-use controls. Meets industry standards.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Heavy-Duty Double Horizontal Sheave Assemblies
$799.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Double Horizontal Sheave Assemblies
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Double Horizontal Sheave Assemblies are built for robust lifting and pulling applications, with a high capacity of 4000 lbs. Featuring a durable wire rope diameter of 7/16 inches and precise dimensions for secure mounting, these assemblies deliver reliable performance. Equipped with essential controls like a lever drum and magnetic remote pushbutton, they ensure operational convenience and safety. Ideal for applications requiring electrical brake support, these assemblies meet stringent industry standards for quality and efficiency.
Product Specifications
Specifications Capacity
4000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

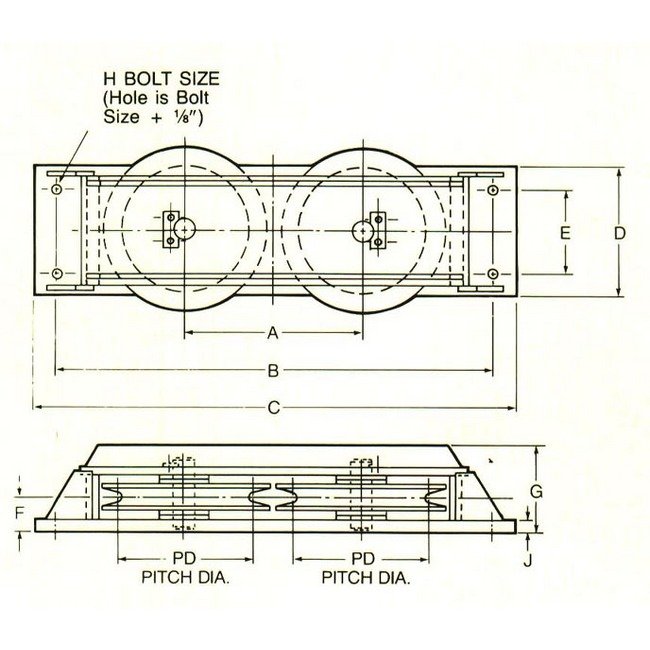

Specifications Dimension A
9 3/4 inches
Specifications Dimension B
22 inches
Specifications Dimension C
24 inches
Specifications Dimension D
6 inches
Specifications Dimension E
3 1/4 inches
Specifications Dimension F
1 5/8 inches
Specifications Dimension G
5 1/2 inches
Specifications Dimension H
1 inches
Specifications Dimension J
7/8 inches
Specifications Model
DHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
6 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
7/16 inches
