Heavy-Duty Double Horizontal Sheave Assemblies
Heavy-Duty Double Horizontal Sheave Assemblies
SKU:RIG-96e43f
Heavy-Duty Double Horizontal Sheave Assemblies for secure lifting and pulling tasks with a 6000 lbs capacity, wire rope diameter 1/2 inches, and electrical brake compatibility.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Heavy-Duty Double Horizontal Sheave Assemblies
$349.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Double Horizontal Sheave Assemblies
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Double Horizontal Sheave Assemblies are expertly designed for robust lifting and pulling tasks, offering a remarkable capacity of 6000 lbs. With a wire rope diameter of 1/2 inches and high-quality construction, these assemblies ensure reliable performance. Built-in electrical brake compatibility enhances safety during operations, while the versatile mounting options cater to horizontal base, inverted ceiling, and vertical installations. Lever drum controls on the winch and a magnetic remote pushbutton provide convenient operation, making these assemblies ideal for various industrial applications.
Product Specifications
Specifications Capacity
6000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

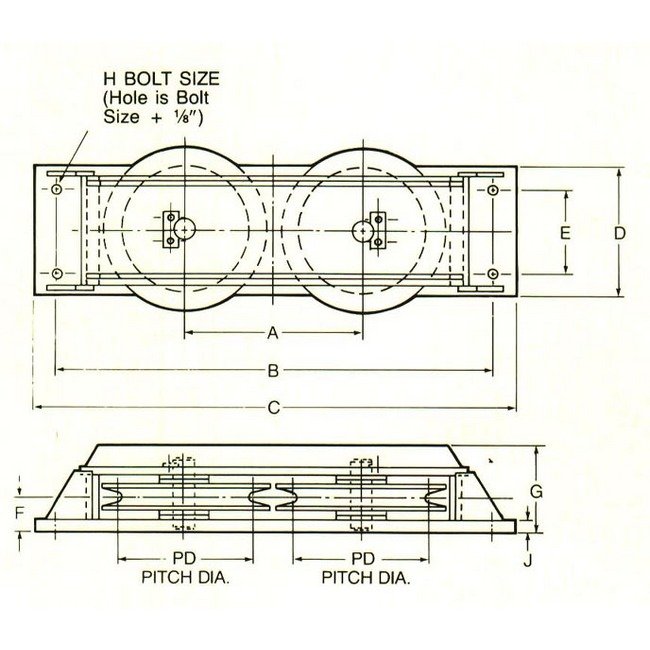

Specifications Dimension A
10 1/4 inches
Specifications Dimension B
24 inches
Specifications Dimension C
26 1/4 inches
Specifications Dimension D
8 1/2 inches
Specifications Dimension E
4 3/4 inches
Specifications Dimension F
2 1/4 inches
Specifications Dimension G
6 1/2 inches
Specifications Dimension H
1 1/8 inches
Specifications Dimension J
1 inches
Specifications Model
DHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
8 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
1/2 inches
