Heavy-Duty Double Horizontal Sheave Assemblies
Heavy-Duty Double Horizontal Sheave Assemblies
SKU:RIG-6b6ed5
Powerful Heavy-Duty Sheave Assemblies: 7500 lbs. capacity, 9/16' wire, precise control, meets industry certifications.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Heavy-Duty Double Horizontal Sheave Assemblies
$549.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Double Horizontal Sheave Assemblies
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched lifting and pulling power with our Heavy-Duty Double Horizontal Sheave Assemblies. With a robust capacity of 7500 lbs. and a reliable 9/16 inches wire rope diameter, these assemblies are perfect for applications requiring precise control and strength. Designed for durability and efficiency, these assemblies feature a lever drum mounted at the winch for convenient controls, ensuring seamless operation. Ideal for use in industrial settings, this product also meets stringent Federal/DoD procurement standards and industry-specific certifications.
Product Specifications
Specifications Capacity
7500 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

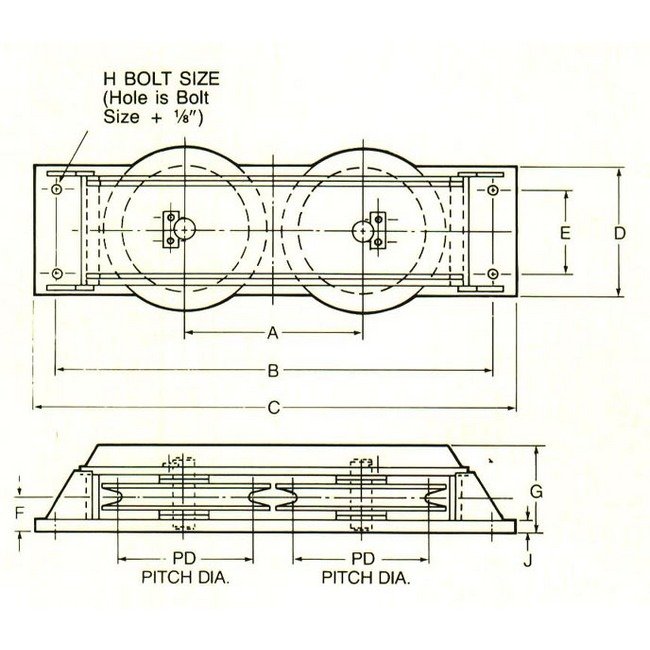

Specifications Dimension A
13 1/2 inches
Specifications Dimension B
26 inches
Specifications Dimension C
32 inches
Specifications Dimension D
10 inches
Specifications Dimension E
5 inches
Specifications Dimension F
2 1/2 inches
Specifications Dimension G
6 3/4 inches
Specifications Dimension H
1 1/8 inches
Specifications Dimension J
1 1/8 inches
Specifications Model
DHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
11 1/4 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
9/16 inches
