The Heavy-Duty Double Horizontal Sheave Assemblies (Model: DHS) are designed for robust lifting and pulling tasks, boasting a high capacity of 15000 lbs. With a durable wire rope diameter of 3/4 inches and a reliable electrical brake system, these assemblies ensure secure operations. Featuring precise dimensions and multiple mounting options, including horizontal base, inverted ceiling, and vertical mounting, these assemblies offer versatility and ease of installation.
Product Specifications
Specifications Capacity
15000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

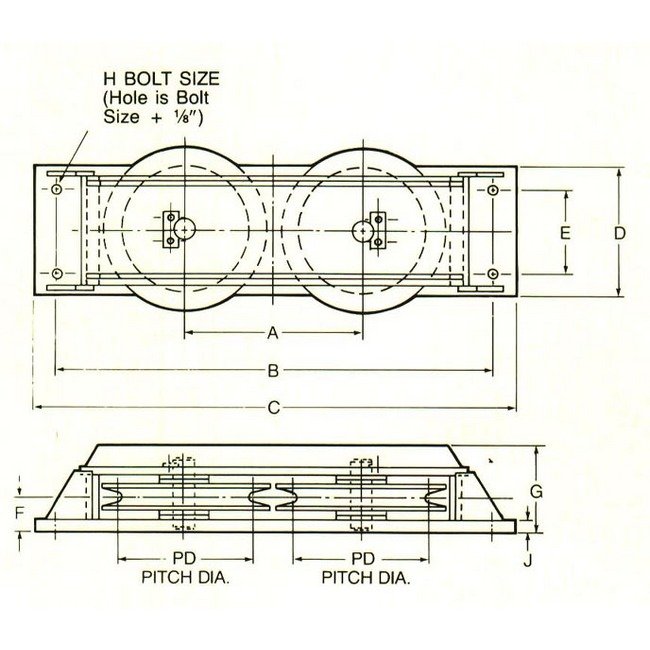

Specifications Dimension A
16 3/4 inches
Specifications Dimension B
36 inches
Specifications Dimension C
40 inches
Specifications Dimension D
14 1/2 inches
Specifications Dimension E
8 1/2 inches
Specifications Dimension F
3 1/8 inches
Specifications Dimension G
9 inches
Specifications Dimension H
1 3/4 inches
Specifications Dimension J
1 1/2 inches
Specifications Model
DHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
3/4 inches
