Heavy-Duty Double Horizontal Sheave Assemblies for industrial and institutional applications. 20000 lbs. capacity, 7/8' wire rope diameter, versatile mounting options.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Heavy-Duty Double Horizontal Sheave Assemblies
$699.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Double Horizontal Sheave Assemblies
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Double Horizontal Sheave Assemblies are designed to meet the rigorous demands of industrial and institutional applications. With a high capacity of 20000 lbs. and a wire rope diameter of 7/8 inches, these assemblies excel in both lifting and pulling operations. Featuring a robust construction with dimensions optimized for stability and functionality, they come with essential controls including a lever drum mounted at the winch and a magnetic remote pushbutton. The versatile mounting options cater to various installation requirements, ensuring seamless integration into different setups. Compliant with Federal/DoD procurement standards and industry-specific certifications, these sheave assemblies guarantee reliability and performance in critical operations.

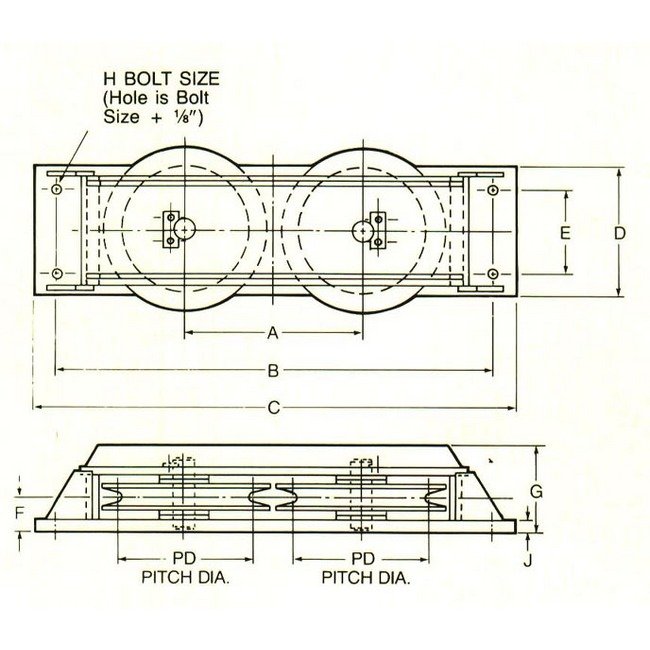

Product Specifications
Specifications Capacity
20000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
19 1/2 inches
Specifications Dimension B
44 inches
Specifications Dimension C
49 inches
Specifications Dimension D
16 inches
Specifications Dimension E
9 inches
Specifications Dimension F
3 1/2 inches
Specifications Dimension G
11 inches
Specifications Dimension H
2 inches
Specifications Dimension J
1 3/4 inches
Specifications Model
DHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
17 1/2 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
7/8 inches
