Heavy-Duty Double Horizontal Sheave Assemblies
Heavy-Duty Double Horizontal Sheave Assemblies
SKU:RIG-0f6e65
Enhance lifting and pulling operations with our Heavy-Duty Double Horizontal Sheave Assemblies. Ideal for electrical brake applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Heavy-Duty Double Horizontal Sheave Assemblies
$699.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Double Horizontal Sheave Assemblies
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Increase efficiency and safety in your lifting and pulling applications with our Heavy-Duty Double Horizontal Sheave Assemblies. With a robust model DHS design offering a 10000 lbs. capacity and compatible with 5/8 inches wire rope diameter, these assemblies prioritize durability. Featuring key dimensions for precise installation, lever drum mounted controls, and versatile mounting options, our assemblies meet the stringent requirements of government and institutional procurement standards.
Product Specifications
Specifications Capacity
10000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

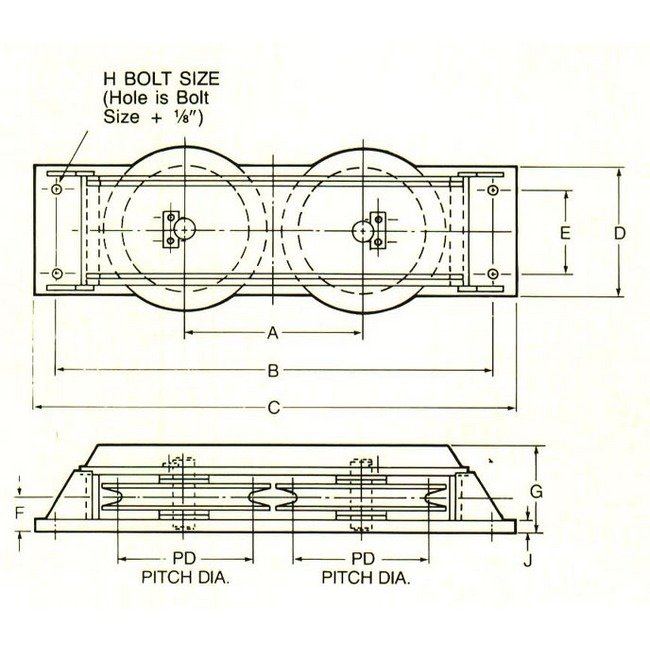

Specifications Dimension A
14 inches
Specifications Dimension B
30 inches
Specifications Dimension C
34 inches
Specifications Dimension D
12 inches
Specifications Dimension E
6 1/2 inches
Specifications Dimension F
2 3/4 inches
Specifications Dimension G
7 inches
Specifications Dimension H
1 1/2 inches
Specifications Dimension J
1 1/4 inches
Specifications Model
DHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
12 1/2 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
5/8 inches
