Heavy Duty Drilled & Tapped Self-Colored Eye Nut

Name: Heavy Duty Drilled & Tapped Self-Colored Eye Nut
Brand: Lexco Cable Manufacturing
SKU: WIR-9fc8c5
Price: 29.99 USD
Availability: OutOfStock

SKU:WIR-9fc8c5

High-strength, self-colored Eye Nut for secure wire rope connections. Safety factor 5:1. Meets federal standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Drilled & Tapped Self-Colored Eye Nut offers exceptional strength and durability for a wide range of wire rope applications. Featuring a 1" Bail Size and a Tap Size of 1"-8, this eye nut is meticulously crafted to meet stringent safety standards with a Safe Working Load of 18,800 lbs, based on a safety factor of 5 to 1. The self-colored finish adds corrosion resistance, while the drilled and tapped design ensures easy installation and secure fastening. Compliant with federal procurement standards, this eye nut is a reliable choice for demanding industrial environments.

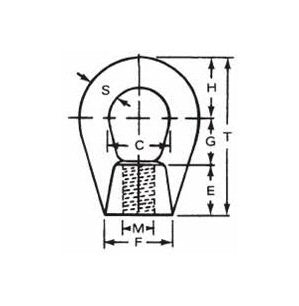

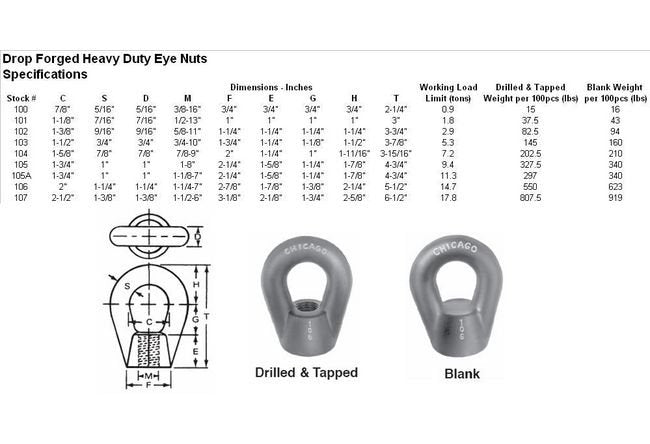

Product Specifications

Specifications Bail Size In

Specifications C

1-3/4

Specifications D

Specifications E

1-5/8

Specifications F

2-1/4

Specifications G

1-1/4

Specifications H Ref

1-7/8

Specifications M

1-8

Specifications S

Specifications Safe Working Load

18,800 lbs

Specifications Stock

105

Specifications T

4-3/4

Specifications Tap Size

1"-8

CAGE

0T9L4

NAICS

332510

PSC

4030
