Heavy-Duty Driven Pallet Roller Conveyor with Gear Motor
Heavy-Duty Driven Pallet Roller Conveyor with Gear Motor
SKU:PAC-00b954
Reliable high-capacity pallet roller conveyor with 0.37 kW gear motor, ideal for heavy-duty industrial use.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Heavy-Duty Driven Pallet Roller Conveyor with Gear Motor
$2,499.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Driven Pallet Roller Conveyor with Gear Motor
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

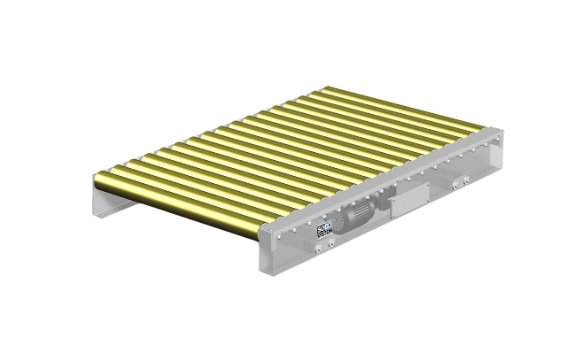

The SOCO 970mm Width x 2000mm Length Driven Pallet Roller Conveyor is a robust solution designed for heavy pallet handling. It features electro galvanized steel construction, 80mm conveying rollers, and a 0.37 kW gear motor ensuring a smooth operation at 11.4 m/min. With a payload capacity of up to 1,500kg per pallet, this conveyor is ideal for industrial settings where reliability is paramount. The chain drive system with hardened steel sprockets and U-profile chain cover meets stringent durability standards, while the 178mm roller pitch offers optimal pallet support.
Product Specifications
Dimensions Length
2000 mm
Dimensions Width
970 mm
Note Note
Subject to alteration.
Specifications Axle Diameter
17 mm
Specifications Bearings
6203 - 2rs
Specifications Chain Cover
Chains are protected by a U-profile mounted above the chains. The chain cover is beneath the roller level to ensure access to pallets from both sides of the conveyor.
Specifications Chain Drive
Chains operate beneath roller surface. Chain drive is from roller to roller. 1/2" sprockets of hardened steel are integrated with the bearing of the roller.
Specifications Conveying Rollers Diameter
80 mm
Specifications Frames
Cold-bend angle profiles bolted to C-profile cross bars with supports.
Specifications Gear Motor
0.37 kW
Specifications Minimum Height
255 mm
Specifications Pallet Handling Surface Treatment
Electro galvanized steel with the exception of gear motor, chain, and roller axles. Rollers are electro galvanized with yellow crome.
Specifications Payload
For use up to 1,500 kg load per pallet and motor unit. Maximum suitable load is determined by several factors like speed of operation, width of conveyor, and shape and width of the pallets. If in doubt, please contact SOCO SYSTEM.
Specifications Roller Conveyor
Electro galvanized steel tubes
Specifications Roller Fittings
Rollers are suspended between side frames by means of M10 axle.
Specifications Roller Pitch
178 mm
Specifications Speed
11.4 m/min
Specifications Standard Total Height From Floor To Top Of Roller
190 mm
