Heavy Duty Drop Forged Eye Nut - Tapped Self-Colored 3/4"

Name: Heavy Duty Drop Forged Eye Nut - Tapped Self-Colored 3/4"
Brand: Lexco Cable Manufacturing
SKU: WIR-daacc7
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-daacc7

Heavy Duty Drop Forged Eye Nut for wire rope applications, self-colored finish, 10,600 lbs load capacity

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Heavy Duty Drop Forged Eye Nut offers exceptional strength and reliability for wire rope applications. Made with a 3/4" bail size and a 3/4"-10 tap size, this eye nut is designed to withstand loads up to 10,600 lbs, meeting a safety factor of 5 to 1. The self-colored finish ensures durability in various environments. Whether used as a blank or drilled & tapped as per specification, this eye nut guarantees secure anchoring and reliable performance.

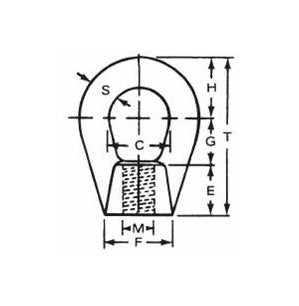

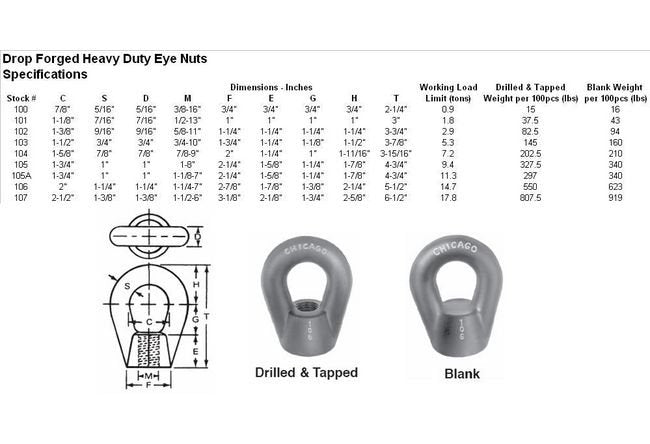

Product Specifications

Specifications Bail Size In

3/4"

Specifications C

1-1/2

Specifications D

3/4

Specifications E

1-1/4

Specifications F

1-3/4

Specifications G

1-1/8

Specifications H Ref

1-1/2

Specifications M

3/4-10

Specifications S

3/4

Specifications Safe Working Load

10,600 lbs

Specifications Stock

103

Specifications T

3-7/8

Specifications Tap Size

3/4"-10

CAGE

0T9L4

NAICS

332510

PSC

4030

Heavy Duty Drop Forged Eye Nut - Tapped Self-Colored 3/4"
