Heavy-Duty Dual Flange CB Elements (Sizes 12-45)

Heavy-Duty Dual Flange CB Elements (Sizes 12-45)

CLU-7731c6

Maximize torque with our Heavy-Duty Dual Flange CB Elements for superior performance and longevity in high-speed applications.

$1,499.99
$1,499.99
Sale

Initiate Order

Heavy-Duty Dual Flange CB Elements (Sizes 12-45)

Heavy-Duty Dual Flange CB Elements (Sizes 12-45)

$1,499.99

Quantity: 1

Claim Your Seller Account

Heavy-Duty Dual Flange CB Elements (Sizes 12-45)

Heavy-Duty Dual Flange CB Elements (Sizes 12-45)

$1,499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Enhance your machinery's torque capacity with our Heavy-Duty Dual Flange CB Elements. By bolting together two dual flanged elements, you get double the torque capacity. These elements, available in sizes 12CB350 through 45CB525, boast a Torque Rating of 150,000 lb·in | 17,000 Nm at 75 psi/5.5 bar, ensuring reliable performance at speeds up to 1200 rpm. With stringent friction area and wear thickness standards, our elements provide durability and longevity in demanding applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

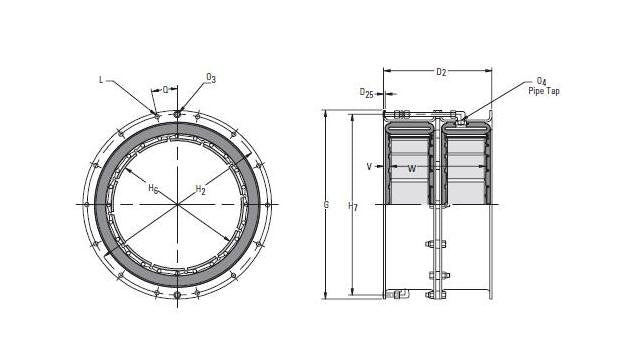

Product Specifications

Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
400 in³ | 6.56 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
2.07 E-06 bar/rpm2 | 30 E-06 psi/rpm2
Specifications Dimension D2
13.63 in | 346 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
31.500 in | 800.1 mm
Specifications Dimension H2
30.375 in | 771.5 mm
Specifications Dimension H6
24.19 in | 614 mm
Specifications Dimension H7
30.38 in | 772 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
676 in² | 4360 cm²
Specifications Friction Shoe Width W
12.00 in | 305 mm
Specifications Inertia
292 lb·ft² | 12.26 kg·m²
Specifications Maximum Speed
1200 rpm
Specifications Minimum Drum Diameter
23.87 in | 606 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
28
Specifications Number Of Mounting Holes
16
Specifications Size
24CB500
Specifications Torque Rating 75 Psi55 Bar
150000 lb·in | 17000 Nm
Specifications Weight
209 lb | 95 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
