Heavy-Duty Dual Flange CB Elements | Sizes 12-45
Heavy-Duty Dual Flange CB Elements | Sizes 12-45
SKU:CLU-246dd4
Enhance your system's torque capacity with the Heavy-Duty Dual Flange CB Elements. Ideal for industrial applications, available in sizes 12-45.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Heavy-Duty Dual Flange CB Elements | Sizes 12-45
$2,899.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Dual Flange CB Elements | Sizes 12-45
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty Dual Flange CB Elements offer unparalleled torque capacity, with the ability to combine two elements for increased performance. Ranging from 12CB350 to 45CB525, these elements boast a Torque Rating of 212,000 lb·in, Maximum Speed of 1000 rpm, and a durable construction designed to meet the rigorous demands of industrial applications. With a robust design and precise engineering, these elements ensure reliable performance and optimal efficiency for clutch and brake systems.
Ready to Grow Without Cash Flow Constraints?

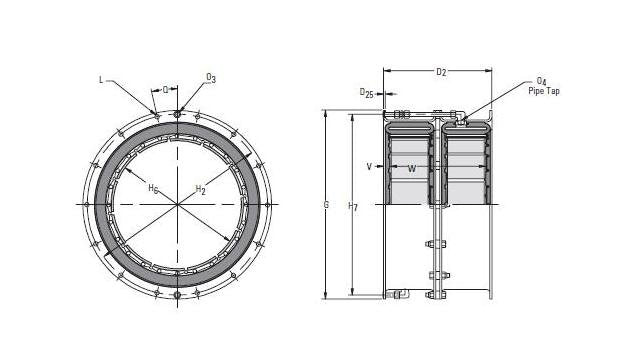

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
1/2-14
Specifications Air Tube Cavity
560 in³ | 9.18 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.625 in | 16 mm
Specifications Centrifugal Loss Constant Cs
2.55 E-06 bar/rpm2 | 37 E-06 psi/rpm2
Specifications Dimension D2
14.44 in | 367 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
36.000 in | 914.4 mm
Specifications Dimension H2
34.750 in | 882.7 mm
Specifications Dimension H6
28.19 in | 716 mm
Specifications Dimension H7
34.50 in | 876 mm
Specifications Dimension O3
0.50 in | 13 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
860 in² | 5547 cm²
Specifications Friction Shoe Width W
12.69 in | 322 mm
Specifications Inertia
517 lb·ft² | 21.71 kg·m²
Specifications Maximum Speed
1000 rpm
Specifications Minimum Drum Diameter
27.81 in | 706 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
34
Specifications Number Of Mounting Holes
16
Specifications Size
28CB525
Specifications Torque Rating 75 Psi55 Bar
212000 lb·in | 24000 Nm
Specifications Weight
286 lb | 130 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
