The Heavy-Duty Dual Flange CB Elements provide exceptional torque capacity, with the capability to double torque output by bolting two elements together. Ranging from sizes 12CB350 to 45CB525, these elements offer a Torque Rating of up to 520000 lb·in, making them ideal for high-performance applications. With features like a durable friction lining, high-speed compatibility, and precision engineering, these elements ensure reliable braking and clutching operations in demanding environments.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.

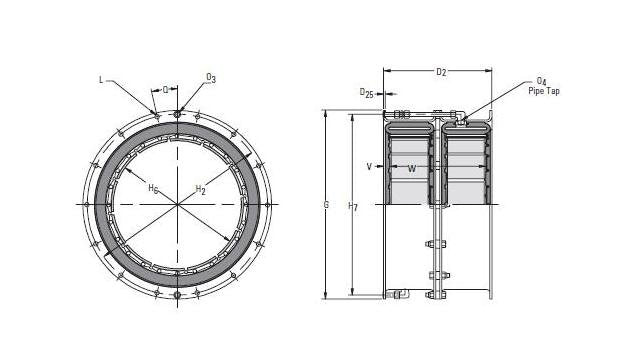

Specifications Air Inlet Thread
3/4-14
Specifications Air Tube Cavity
860 in³ | 14.1 dm³
Specifications Angle Q
7.500 º
Specifications Bolt Hole Size L
0.750 in | 19 mm
Specifications Centrifugal Loss Constant Cs
4.42 E-06 bar/rpm2 | 64 E-06 psi/rpm2
Specifications Dimension D2
14.44 in | 367 mm
Specifications Dimension D25
0.28 in | 7 mm
Specifications Dimension G
53.625 in | 1362.1 mm
Specifications Dimension H2
52.125 in | 1324 mm
Specifications Dimension H6
45.19 in | 1148 mm
Specifications Dimension H7
52.25 in | 1327 mm
Specifications Dimension O3
0.63 in | 16 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
1350 in² | 8708 cm²
Specifications Friction Shoe Width W
12.69 in | 322 mm
Specifications Inertia
2293 lb·ft² | 96.31 kg·m²
Specifications Maximum Speed
670 rpm
Specifications Minimum Drum Diameter
44.75 in | 1137 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
54
Specifications Number Of Mounting Holes
24
Specifications Size
45CB525
Specifications Torque Rating 75 Psi55 Bar
520000 lb·in | 58800 Nm
Specifications Weight
537 lb | 243 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
