The Heavy Duty Dual Flange Clutch Brake Elements offer exceptional torque capacity, with the ability to bolt two elements together for double the performance. Ranging from sizes 12CB350 to 45CB525, these elements are designed for heavy-duty applications, delivering a Torque Rating of 70400 lb·in | 7960 Nm. With precise dimensions, high maximum speed of 1550 rpm, and durable construction, these elements ensure reliable performance under demanding conditions.

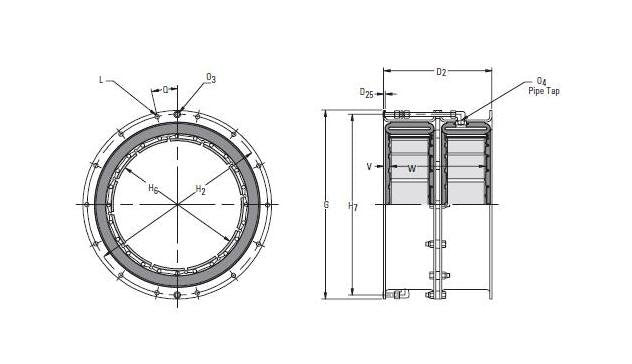

Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
280 in³ | 4.59 dm³
Specifications Angle Q
22.500 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
1.38 E-06 bar/rpm2 | 20 E-06 psi/rpm2
Specifications Dimension D2
13.63 in | 346 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
23.500 in | 596.9 mm
Specifications Dimension H2
22.500 in | 571.5 mm
Specifications Dimension H6
16.19 in | 411 mm
Specifications Dimension H7
22.25 in | 565 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
482 in² | 3109 cm²
Specifications Friction Shoe Width W
12.00 in | 305 mm
Specifications Inertia
106 lb·ft² | 4.45 kg·m²
Specifications Maximum Speed
1550 rpm
Specifications Minimum Drum Diameter
15.87 in | 403 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
20
Specifications Number Of Mounting Holes
8
Specifications Size
16CB500
Specifications Torque Rating 75 Psi55 Bar
70400 lb·in | 7960 Nm
Specifications Weight
151 lb | 68 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
