Heavy Duty Dual Motor Underhung Crane
Heavy Duty Dual Motor Underhung Crane
SKU:REL-4a4bc3
High-performance dual motor underhung crane with 10-ton capacity, S24 x 80.0C girder size, and top-running design.
Regular price
$16,799.00
Regular price
Sale price
$16,799.00
Unit price
per
Initiate Order
Heavy Duty Dual Motor Underhung Crane
$16,799.00
Quantity: 1
Claim Your Seller Account
Heavy Duty Dual Motor Underhung Crane
$16,799.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

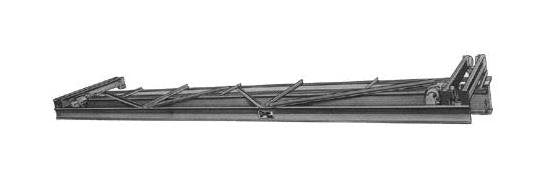

The Heavy Duty Dual Motor Underhung Crane is engineered for exceptional performance in extreme conditions. With a lifting capacity of 10 tons and a span of 35 feet, this crane boasts a sturdy S24 x 80.0C girder size for enhanced stability. Equipped with dual motors, this crane ensures efficient operation in both indoor and outdoor settings, making it ideal for industrial applications. Designed with precision and safety in mind, the crane features a range of industry-leading specifications, including runway collectors, top-running underhung single girder type, and safety enclosed bridge conductors, meeting the highest standards of reliability and durability.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
10 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
5732 lbs.

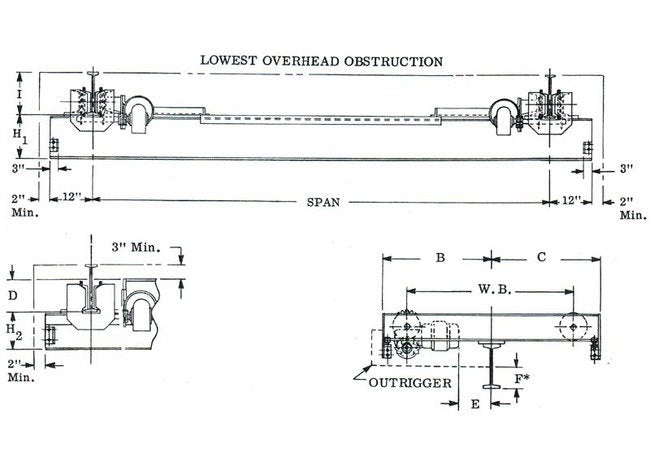

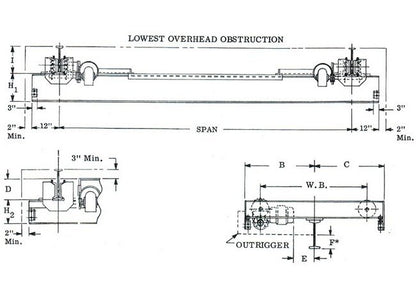

Specifications Dimension B
3'-4"
Specifications Dimension C
3'-3"
Specifications Dimension D
12 inches
Specifications Dimension E
11 inches
Specifications Dimension H1
25 inches
Specifications Dimension H2
12 inches
Specifications Electric
&nbps;
Specifications Girder Size
S24 x 80.0C
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Max Runway Rail
S20 x 65.4
Specifications Min Runway Rail
S12 x 31.8
Specifications Model
Model USD Motorized Cranes
Specifications Span
35'-0"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Base
5'-0"
Specifications Wheel Diameter
8 1/2 inches
Specifications Wheel Load Per Pair
12685 lbs.
