Heavy-Duty Dual Passage Rotorseals
Heavy-Duty Dual Passage Rotorseals
SKU:CLU-714cf7
Boost efficiency with the Heavy-Duty Dual Passage Rotorseals, designed for secure sealing and reliable performance. Meets stringent procurement standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Heavy-Duty Dual Passage Rotorseals
$299.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Dual Passage Rotorseals
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance productivity with the Heavy-Duty Dual Passage Rotorseals, featuring a unique design that seals inner and outer passages securely. With a larger mounting flange for stability, this product ensures reliable performance under pressure. Built to meet stringent institutional procurement standards like Federal/DoD and GSA requirements, this rotorseal is a versatile solution for demanding applications.
Product Specifications
Note 0
Passage consists of eleven 0.14 in (3.6 mm) diameter holes.Tolerance +0.000/-0.003 in (+0.00/-0.08 mm)

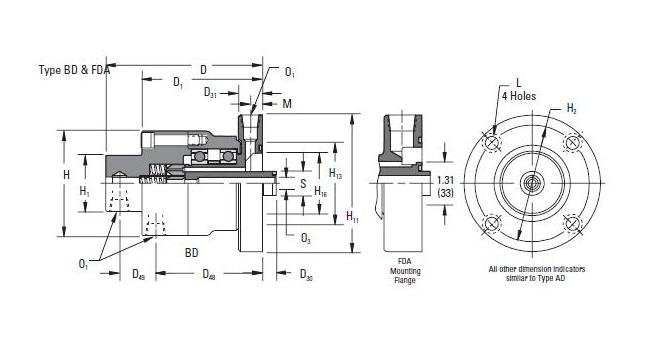

Specifications Dimension D
4.88 in | 124 mm
Specifications Dimension D1
3.75 in | 95 mm
Specifications Dimension D30
0.393 in | 10.0 mm
Specifications Dimension D31
0.75 in | 19 mm
Specifications Dimension D48
3.34 in | 85 mm
Specifications Dimension D49
1.13 in | 29 mm
Specifications Dimension H
3.25 in | 83 mm
Specifications Dimension H1
1.75 in | 44 mm
Specifications Dimension H11
4.250 in | 108 mm
Specifications Dimension H13
2.78 in | 71 mm
Specifications Dimension H16
1.88 in | 48 mm
Specifications Dimension H2
3.562 in | 90.5 mm
Specifications Dimension L
0.40 in | 10 mm
Specifications Dimension M
0.38 in | 10 mm
Specifications Dimension O1
1/4-18
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension S
0.750 in | 19.1 mm
Specifications Inner Passage Area
0.049 in² | 0.32 cm²
Specifications Manufacturer
Eaton-Airflex
Specifications Maximum Pressure
150 psi | 10.4 bar
Specifications Maximum Speed
1200 rpm
Specifications Outer Passage Area
0.171 in² | 1.10 cm²
Specifications Size
BD
Specifications Weight
5.8 lb | 2.6 kg
