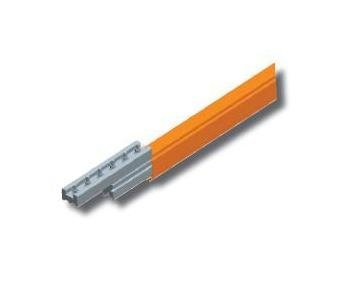

Heavy-Duty DURA-COAT Conductor Bar with Splice Installs
Heavy-Duty DURA-COAT Conductor Bar with Splice Installs
SKU:CRA-e80698
Heavy-Duty DURA-COAT Conductor Bar for corrosive environments. Amperage Rating: 1500 A, Material: PVC, Max Temp: 160°F. Durable and reliable choice.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Heavy-Duty DURA-COAT Conductor Bar with Splice Installs
$129.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty DURA-COAT Conductor Bar with Splice Installs
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy-Duty DURA-COAT Conductor Bar Cut Lengths with Splice Installed are specifically designed for highly corrosive environments, making them ideal for industrial settings. With an impressive amperage rating of 1500 A and a material composition of PVC, these conductor bars are built to withstand extreme conditions. The maximum temperature of 160 °F ensures reliable performance even in challenging situations. Additionally, the UV stable black cover provides protection against outdoor elements. With a weight of 3.6 lb/ft and lengths ranging from 5 to 29 ft, these conductor bars offer flexibility and durability. Suitable for both AC and DC systems with maximum voltages of 4160 V and 600 V respectively, these bars guarantee exceptional resistance and impedance levels. The Heavy-Duty DURA-COAT Conductor Bar is a reliable and durable solution for demanding environments.
Product Specifications
Cover Specifications Dielectric Strength
450 V/mil
Cover Specifications Flame Test
Self Extinguishing
Cover Specifications Normal Ambient
-40 to 104 ºF
Cover Specifications Specific Density
1.5 g/cm³
Cover Specifications Volume Resistivity
>1012 Ω/mil
Specifications Amperage Rating
1500 A
Specifications Available Accessories
Pick-up Guides for discontinuous systems | Transfer Caps for switches | Vertical and horizontal curves
Specifications Cover Type
Phase & Ground / Outdoors UV Stable (Black)

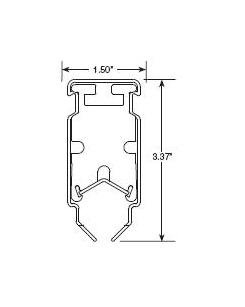

Specifications Cross Sectional Area
2.29 in²
Specifications Length
5 to 29 ft
Specifications Material
PVC
Specifications Maximum System Voltage Ac Or Dc Per Ul Listing
4160 V | 600 V
Specifications Maximum Temperature
160 ºF
Specifications Minimum Bending Radius
15 ft
Specifications Phase Corrected Impedance Z At 20 C
2.28 x 10-5 c/ft
Specifications Resistance R For Dc At 20 C
0.64 x 10-5 c/ft
Specifications Spacing Between Conductors
3.0 in
Specifications Support Spacing
10 ft
Specifications Weight
3.6 lb/ft
