Heavy Duty Economatic Drain Valve
Heavy Duty Economatic Drain Valve
SKU:SSP-5b5c63
Ultimate solution for leaking, clogging, and noise problems in air treatment systems. Adjustable cycle and drain times with NEMA-standard design for easy installation.
Regular price
$99.95
Regular price
Sale price
$99.95
Unit price
per
Initiate Order
Heavy Duty Economatic Drain Valve
$99.95
Quantity: 1
Claim Your Seller Account
Heavy Duty Economatic Drain Valve
$99.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Economatic Drain Valve by Arrow is the ultimate solution to leaking, clogging, and noise issues commonly associated with float-type drains. With adjustable cycle and drain times ranging from 1 to 60 minutes and 1 to 30 seconds respectively, this NEMA-standard drain valve can withstand a maximum working pressure of 200 psig and fluid temperatures up to +165°F. Featuring a solenoid controlled by a solid-state timer, manual override switch, and a spring-loaded soft seat solenoid for noise reduction and leak-proof performance, the Economatic Drain ensures efficient operation and easy installation. Ideal for clean air treatment applications, this drain valve is a reliable and cost-effective choice for desiccant air dryers.
Product Specifications

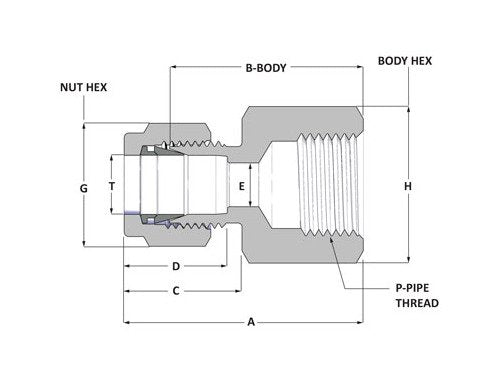

Dimensions A
1.48 in
Dimensions B
1.19 in
Dimensions C
0.70 in
Dimensions D
0.60 in
Dimensions E
0.19 in
Dimensions G
9/16 in
Dimensions H
3/4 in
Dimensions P
1/4 in
Dimensions T
1/4 in
Specifications Body Material
Alloy 400
Specifications Brand Series
Duolok
Specifications Connection 1 Size
1/4 in
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Female BSPP
Specifications End Connections
TF x Female BSPP
Specifications E Num
0.19 in
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Straight
Category 6
Duolok® Tube Fittings
