Heavy-Duty Electric Hoist Jib Crane | Model 200 BPM

Name: Heavy-Duty Electric Hoist Jib Crane | Model 200 BPM
Brand: Stanspec div. of American Crane & Hoist
SKU: REL-4d3c11
Price: 5899.99 USD
Availability: OutOfStock

SKU:REL-4d3c11

Model 200 BPM Jib Crane | 6000 lbs. Capacity | Ideal for Heavy-Duty Tasks

$5,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

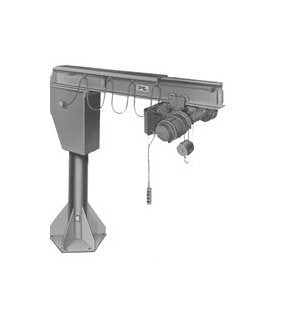

The Model 200 BPM Base Plate Mounted Jib Crane is a reliable solution for standard duty applications, designed for a capacity of 6000 lbs. With a span of 18 feet and a robust boom size of 20 inches, this crane is ideal for loading, handling, and transferring materials safely and efficiently. The limited boom deflection ensures precise load positioning, making it suitable for heavy-duty tasks. Equipped with various mounting options and electrification features, this crane offers versatility and reliability in diverse work environments.

Product Specifications

Electrification Electrification

Power Supply Extra Features

Anchor Bolts | Template

Specifications Base Plate Size D

56 inches

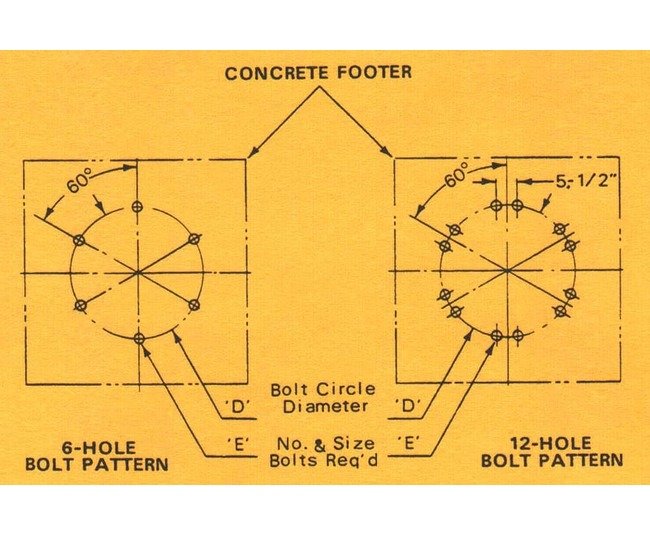

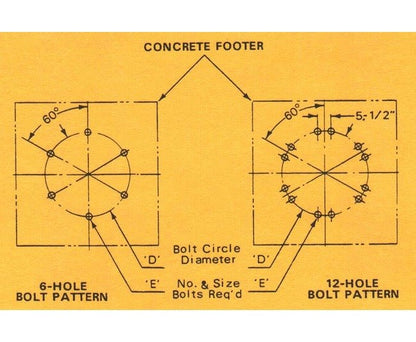

Specifications Bolt Circle Diameter D

48 inches

Specifications Bolt Diameter E

1 1/4 inches

Specifications Boom Size B

20 inches

Specifications Capacity

6000 lbs.

Specifications Hoist Headroom

Extreme Conditions | Indoor Use | Manual | Motorized | Outdoor Use

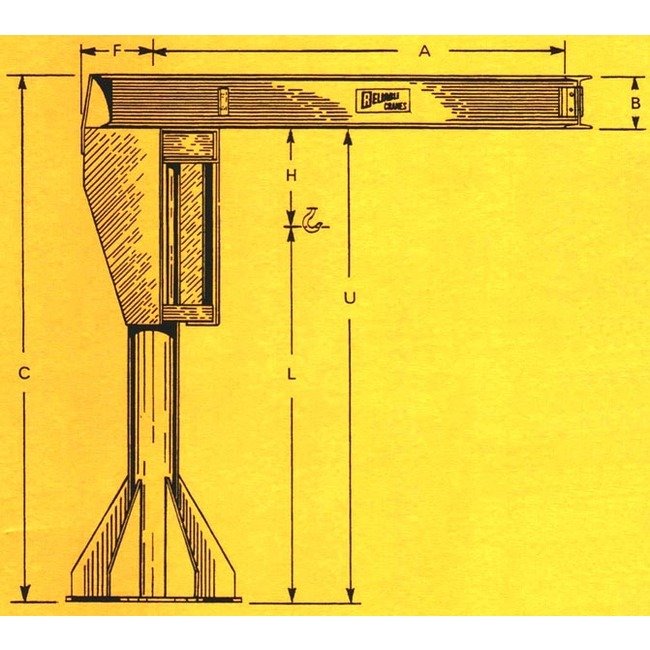

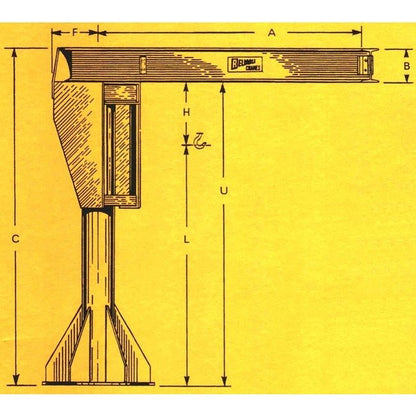

Specifications Max Height C

16'-9"

Specifications Model

BPM | CIM | TRW | CDC | TDC | CBM | TRM

Specifications Mounting

BPM - Baseplate Mounted | CIM - Concrete | Column Mast Supported | Wall - Column Mounted

Specifications No Of Bolts

Specifications Span A

18'-0"

Specifications Under Boom U

15'-0"

Specifications Usage

Heavy - Heavy Duty/High Cycle | Standard - General Purpose

Specifications Weight

4520 lbs.
