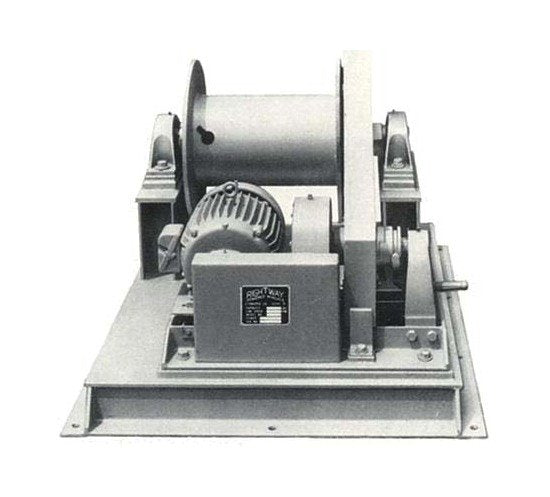

Heavy Duty Electric Industrial Winch - Model E5
Heavy Duty Electric Industrial Winch - Model E5
SKU:RIG-6d47b2
Powerful 25 HP heavy-duty winch with high torque motor, self-locking gearing, and large wire rope capacity for industrial lifting and pulling tasks.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
Heavy Duty Electric Industrial Winch - Model E5
$6,999.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Industrial Winch - Model E5
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E5 Heavy Duty Industrial Pullers are built for exceptional performance in demanding environments. Featuring a powerful 25 HP motor with high torque crane and hoist duty capacity, this winch offers a minimum 5 to 1 structural safety factor. Its triple reduction self-locking gearing and heavy-duty roller bearing assemblies ensure reliable power transmission and smooth operation. With a 14-inch drum diameter and large wire rope capacity, this winch is perfect for lifting and pulling tasks. Optional features include overspeed automatic load holding, torque limiter clutch, and magnetic remote pushbutton controls. Ideal for all-weather use, this winch is a durable and reliable solution for industrial applications.
Product Specifications
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
14 inches
Specifications Full Drum
900 ft.
Specifications Line Speed
50 FPM
Specifications Motor
25 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
3825 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
43 inches
Specifications Winch Length
71 inches
Specifications Winch Width
55 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
475 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
