Heavy Duty Electric Puller Winch - Model E5
Heavy Duty Electric Puller Winch - Model E5
SKU:RIG-7fc9cb
Powerful and durable heavy-duty electric puller winch for industrial use. 25,000 lbs. capacity, 40 HP motor, and rugged design.
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
Heavy Duty Electric Puller Winch - Model E5
$12,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Puller Winch - Model E5
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

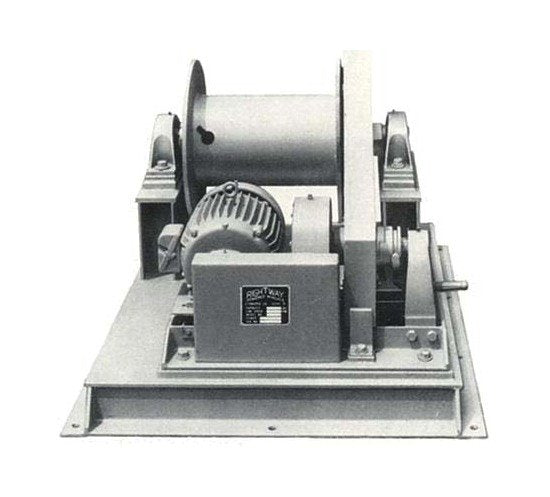

The Model E5 Heavy Duty Electric Puller Winch is a powerhouse designed for industrial applications. With a full load capacity of 25,000 lbs. and a high torque 40 HP motor, this winch delivers exceptional performance. Featuring a triple reduction self-locking gearing system and heavy-duty roller bearing assemblies, it ensures smooth and reliable operation. The all-weather design makes it perfect for rugged environments, while the large diameter drum increases wire rope life. Built with a minimum 5 to 1 structural safety factor, this winch prioritizes durability and safety, making it ideal for lifting and pulling tasks in industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
25000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
20 inches
Specifications Full Drum
750 ft.
Specifications Line Speed
30 FPM
Specifications Motor
40 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
8650 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
56 inches
Specifications Winch Length
91 inches
Specifications Winch Width
71 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
425 ft.
Specifications Wire Rope Size
1 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
