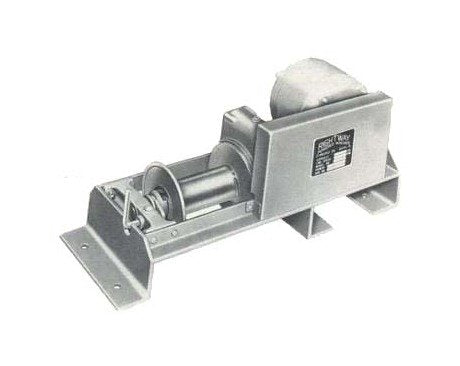

The Model E1 Electric Heavy Duty Winch is a robust solution designed for reliable lifting and pulling operations. With a running capacity of 1000 lbs and a powerful 3 HP motor, this winch offers a line speed of 50 FPM, making it ideal for efficient operations. Its self-locking worm gear reduction system with oil bath lubrication ensures smooth performance in any mounting position - ceiling, wall, or floor. Equipped with precision sealed roller bearings and a 5 to 1 structural safety factor, this winch is built to endure all-weather conditions for continuous use. Optional equipment includes controls tailored to specific applications, an electric motor brake for enhanced safety, a mechanical torque limiter, and a cable drum pressure roller for optimal wire tensioning.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
150 ft.
Specifications Electrical Current
230/460 V-3-60
Specifications Full Drum
410 ft.
Specifications Line Speed
50 FPM
Specifications Motor
3 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
260 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
1000
Specifications Winch Height
16 inches
Specifications Winch Length
37 inches
Specifications Winch Width
17 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
