Heavy Duty Electric Winch E1 - 2000 lbs
Heavy Duty Electric Winch E1 - 2000 lbs
SKU:RIG-69e703
Powerful 2000 lbs Electric Winch for Heavy Duty Industrial Applications. Reliable performance in all weather conditions.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch E1 - 2000 lbs
$2,399.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch E1 - 2000 lbs
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

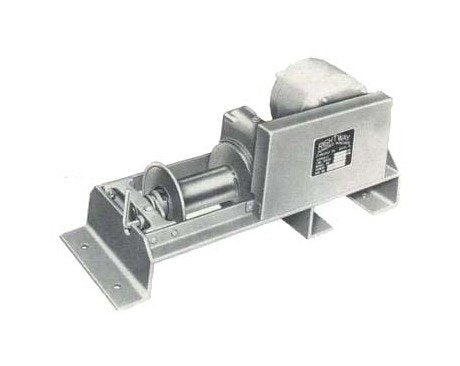

The Model E1 Electric Heavy Duty Winch is a versatile powerhouse designed for industrial applications where reliability and performance are paramount. With a running capacity of 2000 lbs and a 3 HP motor, this winch delivers exceptional pulling power. Its self-locking worm gear reduction system and oilbath lubrication ensure smooth operation in all weather conditions. Equipped with precision sealed roller bearings and a 5 to 1 structural safety factor, this winch is built to endure continuous heavy-duty use. Ideal for lifting and pulling tasks, this winch is a dependable solution for demanding environments.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
120 ft.
Specifications Electrical Current
230/460 V-3-60
Specifications Full Drum
285 ft.
Specifications Line Speed
25 FPM
Specifications Motor
3 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
260 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
2000
Specifications Winch Height
16 inches
Specifications Winch Length
37 inches
Specifications Winch Width
17 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
