Powerful Model E2 Electric Heavy Duty Winch with 1000 lbs capacity, 3 HP motor, and safety features for reliable lifting and pulling.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch E2
$3,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch E2
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

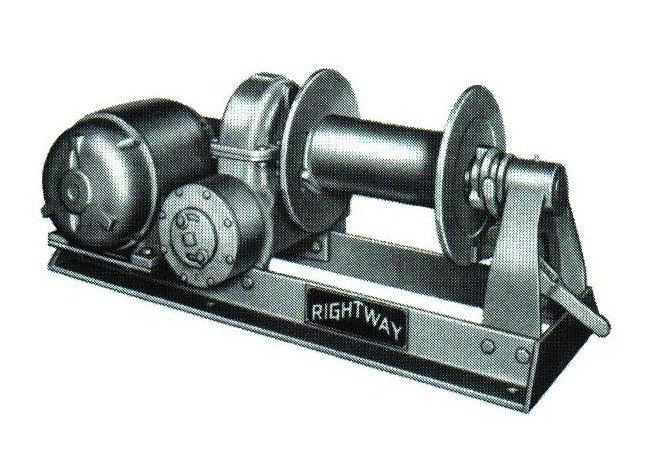

The Model E2 Electric Heavy Duty Winch is a powerhouse designed for exceptional performance in demanding environments. With a running capacity of 1000 lbs and a 3 HP motor, this winch is perfect for lifting and pulling applications. Its self-locking worm gear reduction and automatic mechanical load type safety brake ensure precision and safety. The winch features a durable all-steel fabricated base with a 5 to 1 structural safety factor, guaranteeing maximum durability. Additionally, optional equipment like electric motor brake, mechanical torque limiter, and cable drum pressure roller enhance its functionality, making it versatile for various tasks.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
250 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
800 ft.
Specifications Line Speed
50 FPM
Specifications Motor
3 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
425 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
1000
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
17 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
