Heavy Duty Electric Winch E2 Model - 12000 lbs
Heavy Duty Electric Winch E2 Model - 12000 lbs
SKU:RIG-eea157
High-capacity Heavy Duty Winch for rugged industrial applications, 12000 lbs capacity, 15 HP motor, durable construction.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch E2 Model - 12000 lbs
$3,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch E2 Model - 12000 lbs
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

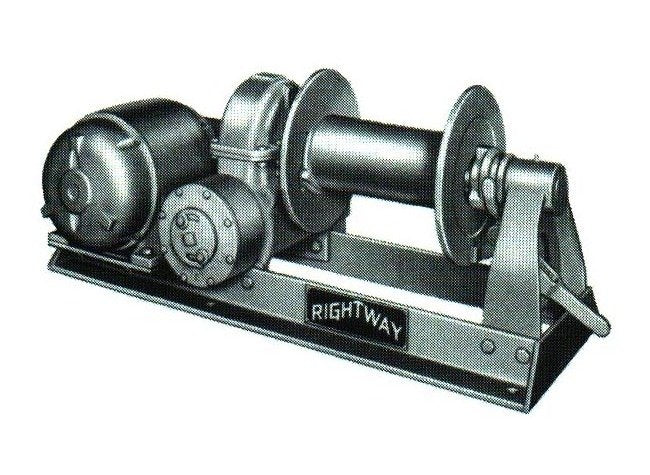

The Model E2 Electric Heavy Duty Winch is a robust solution designed for heavy lifting and pulling applications. With a running capacity of 12000 lbs and a powerful 15 HP motor, this winch is ideal for industrial and rugged environments. Featuring a self-locking worm gear reduction with oilbath lubrication, automatic safety brake, and a steel fabricated base, it ensures maximum durability and safety with a 5 to 1 structural safety factor. This winch also includes optional equipment such as electric motor brake, mechanical torque limiter, and cable drum pressure roller for enhanced functionality. Trust the Model E2 for reliable performance in challenging conditions.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
225 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
375 ft.
Specifications Line Speed
20 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1510 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
12000
Specifications Winch Height
25 inches
Specifications Winch Length
61 inches
Specifications Winch Width
23 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
