Heavy Duty Electric Winch E2 Model - 2000 lbs Capacity
Heavy Duty Electric Winch E2 Model - 2000 lbs Capacity
SKU:RIG-c2a3e4
Powerful 2000 lbs Electric Winch with 5 HP Motor, Ultimate Safety & Durability
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

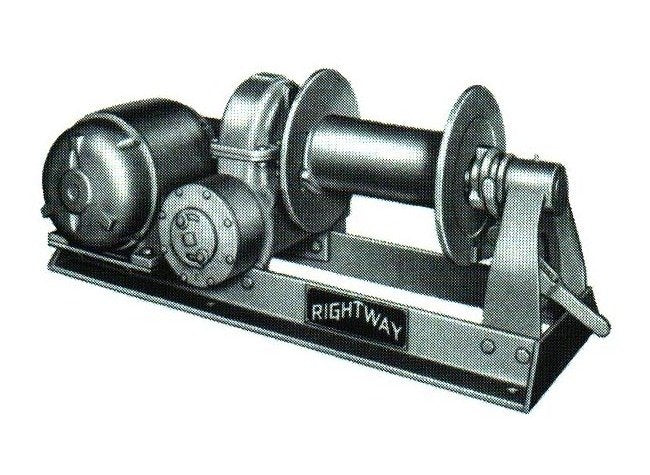

The Model E2 Electric Heavy Duty Winch offers exceptional performance and reliability for lifting and pulling applications. With a 2000 lbs running capacity and a 5 HP motor, this winch is designed for durability and efficiency. Featuring a self-locking worm gear reduction with oil bath lubrication, automatic mechanical load type safety brake, and a steel fabricated base, this winch ensures maximum safety and longevity. The optional equipment includes controls tailored to specific applications, an electric motor brake for hoisting tasks, a mechanical torque limiter, and a cable drum pressure roller for smooth operation. Ideal for all-weather use, this winch is a versatile and robust solution for demanding tasks.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
200 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
550 ft.
Specifications Line Speed
45 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
440 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
2000
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
17 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
