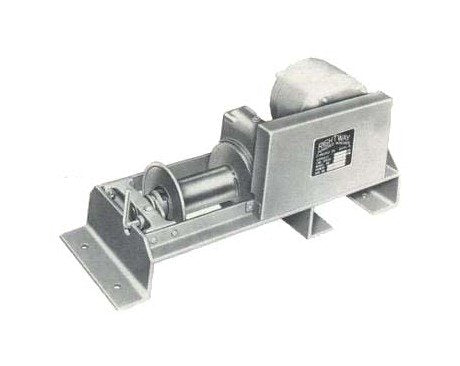

Heavy Duty Electric Winch Model E1
Heavy Duty Electric Winch Model E1
SKU:RIG-8d2ce4
Powerful Model E1 Electric Heavy Duty Winch for lifting and pulling, built for rugged performance in any mounting position.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch Model E1
$2,599.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch Model E1
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E1 Electric Heavy Duty Winch is a powerhouse designed for robust performance in a variety of mounting positions. With self-locking worm gear, oil-bath lubrication, and precision sealed roller bearings, this winch is built for all-day use under all weather conditions. Boasting a 5:1 structural safety factor, it offers a running capacity of 4000 lbs with a line speed of 15 FPM. Equipped with a 5 HP motor and a host of optional equipment for customization, this winch is ideal for lifting, pulling, and applications requiring electrical brake support.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
90 ft.
Specifications Electrical Current
230/460 V-3-60
Specifications Full Drum
135 ft.
Specifications Line Speed
15 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
335 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
4000
Specifications Winch Height
20 inches
Specifications Winch Length
37 inches
Specifications Winch Width
21 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
7/16 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
