Heavy Duty Electric Winch - Model E1
Heavy Duty Electric Winch - Model E1
SKU:RIG-878218
Heavy Duty Electric Winch - Model E1: Versatile, durable, and precise winch with 2000 lbs capacity, ideal for lifting and pulling applications.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E1
$2,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E1
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

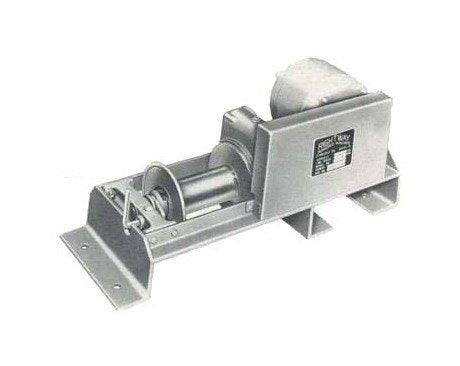

The Model E1 Electric Heavy Duty Winch is a versatile and reliable solution for lifting and pulling applications. With a running capacity of 2000 lbs and a line speed of 50 FPM, this winch is designed for all-weather use. Featuring a self-locking worm gear reduction with oil bath lubrication, precision sealed roller bearings, and a 5 HP motor, this winch is built for durability and long-lasting performance. The optional equipment includes controls tailored to specific applications, an electric motor brake for enhanced safety, a mechanical torque limiter, and a cable drum pressure roller. Whether mounted on the ceiling, wall, or floor, this winch meets the highest standards of quality and safety, making it ideal for institutional and government buyers.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
120 ft.
Specifications Electrical Current
230/460 V-3-60
Specifications Full Drum
285 ft.
Specifications Line Speed
50 FPM
Specifications Motor
5 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
275 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
2000
Specifications Winch Height
16 inches
Specifications Winch Length
37 inches
Specifications Winch Width
19 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/16 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
