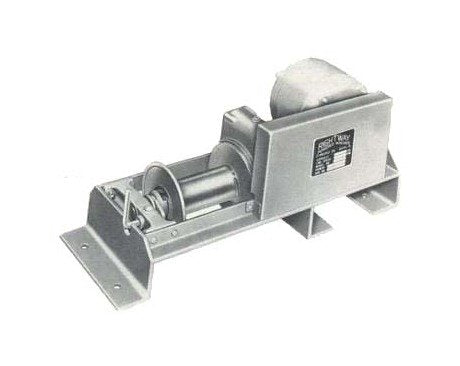

Heavy Duty Electric Winch Model E1 - 1000 lbs Capacity
Heavy Duty Electric Winch Model E1 - 1000 lbs Capacity
SKU:RIG-7b6c43
Industrial-grade Electric Winch for Lifting & Pulling, 1000 lbs Capacity, 20 FPM Speed, Self-locking Worm Gear, 1 HP Motor
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch Model E1 - 1000 lbs Capacity
$1,299.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch Model E1 - 1000 lbs Capacity
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Electric Winch Model E1 is designed for industrial applications that require rugged durability and reliable performance. With a 1000 lbs running capacity and a line speed of 20 FPM, this winch is ideal for lifting and pulling tasks. It features a self-locking worm gear reduction with oil bath lubrication for all-weather use. Equipped with a 1 HP motor and precision sealed roller bearings, this winch ensures smooth operation day in and day out. The winch comes with standard features like multiple mounting options and a 5 to 1 structural safety factor, making it a dependable choice for heavy-duty applications.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
150 ft.
Specifications Electrical Current
115/230 V-1-60
Specifications Full Drum
410 ft.
Specifications Line Speed
20 FPM
Specifications Motor
1 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
250 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
1000
Specifications Winch Height
16 inches
Specifications Winch Length
37 inches
Specifications Winch Width
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
1/4 inches
Standard Features 0
Mounting can be mounted in any position ceiling, wall or floorSelf-locking worm gear reduction oilbath lubrication All weather use is ideal for model R and RA winches Rugged quality precision sealed roller bearings throughout, made to run all day every day, minimum 5 to 1 structural safety factor
