Heavy Duty Electric Winch - Model E2
Heavy Duty Electric Winch - Model E2
SKU:RIG-a63db2
Model E2 Electric Heavy Duty Winch - 4000 lbs, 7/16' wire, 7 1/2 HP motor, all-weather use.
Regular price
$2,699.99
Regular price
Sale price
$2,699.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E2
$2,699.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E2
$2,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

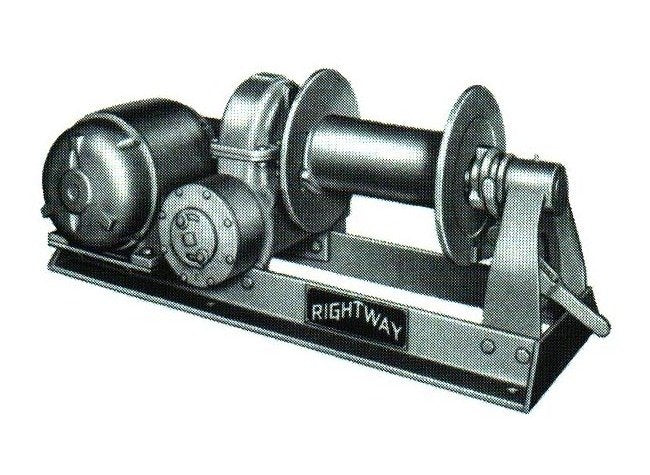

The Model E2 Electric Heavy Duty Winch is a powerhouse designed for robust performance in demanding environments. With a running capacity of 4000 lbs and a sturdy 7/16 inch wire rope, this winch is equipped with a 7 1/2 HP motor for reliable lifting and pulling operations. Its self-locking worm gear reduction with oil bath lubrication ensures smooth operation in all weather conditions. The winch features an automatic mechanical load type safety brake and a steel fabricated base with a 5 to 1 structural safety factor, guaranteeing maximum durability and safety. Additional optional equipment like electric motor brake, mechanical torque limiter, and cable drum pressure roller enhance functionality across various applications.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
160 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
300 ft.
Specifications Line Speed
35 FPM
Specifications Motor
7 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
500 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
4000
Specifications Winch Height
16 inches
Specifications Winch Length
39 inches
Specifications Winch Width
17 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
7/16 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
