Heavy Duty Electric Winch - Model E2
Heavy Duty Electric Winch - Model E2
SKU:RIG-429595
Heavy Duty Electric Winch - 12000 lbs capacity, 20 HP motor, self-locking worm gear reduction, automatic safety brake.
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E2
$5,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E2
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

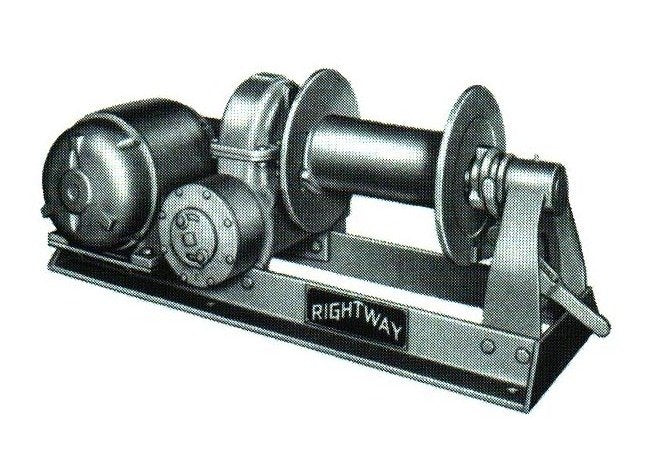

The Model E2 Electric Heavy Duty Winch is a powerful solution for lifting, pulling, and hoisting applications, boasting a running capacity of 12000 lbs. With a 20 HP motor and a 3/4 inch wire rope, this winch provides reliable performance. Featuring a self-locking worm gear reduction with oilbath lubrication, all-weather usability, automatic safety brake, and a durable steel fabricated base with a 5 to 1 structural safety factor. Optional equipment includes controls tailored to specific applications, electric motor brake, mechanical torque limiter, and a cable drum pressure roller for enhanced functionality.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
225 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
375 ft.
Specifications Line Speed
30 FPM
Specifications Motor
20 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1550 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
12000
Specifications Winch Height
25 inches
Specifications Winch Length
61 inches
Specifications Winch Width
23 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
