Heavy Duty Electric Winch - Model E2
Heavy Duty Electric Winch - Model E2
SKU:RIG-a449b9
Powerful 10,000 lb Electric Winch with 15 HP motor, safety brake, and durable construction for reliable performance in all conditions.
Regular price
$4,899.99
Regular price
Sale price
$4,899.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E2
$4,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E2
$4,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

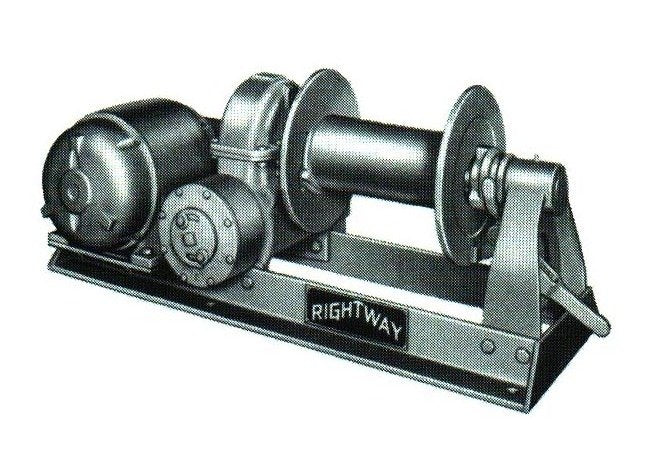

The Model E2 Electric Heavy Duty Winch is an industrial powerhouse designed for robust performance in demanding environments. With a running capacity of 10,000 lbs and a 15 HP motor, this winch delivers reliable pulling and lifting capabilities. Featuring a self-locking worm gear reduction with oil bath lubrication, automatic mechanical load safety brake, and a steel fabricated base for maximum durability, it ensures secure and efficient operation. Ideal for all-weather use, this winch comes equipped with standard features like an adjustable drag free spooling drum and a 5/1 structural safety factor for enhanced reliability. Its optional equipment includes controls tailored to the application, an electric motor brake, mechanical torque limiter, and a cable drum pressure roller for multiple layer reeving. Whether for lifting or pulling tasks, the Model E2 Winch is a dependable solution for industrial needs.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
190 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
350 ft.
Specifications Line Speed
30 FPM
Specifications Motor
15 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
995 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
10000
Specifications Winch Height
21 inches
Specifications Winch Length
47 inches
Specifications Winch Width
21 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
