Heavy Duty Electric Winch - Model E2
Heavy Duty Electric Winch - Model E2
SKU:RIG-3436f2
Powerful Model E2 Electric Heavy Duty Winch with 10,000 lbs capacity, 10 HP motor, and automatic safety brake for lifting and pulling applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E2
$2,599.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E2
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

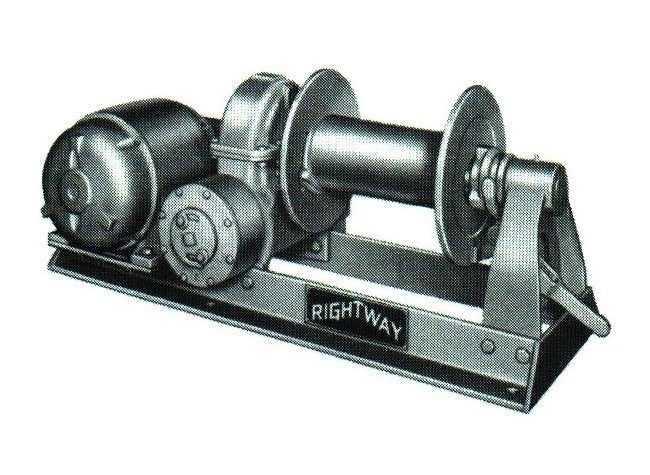

The Model E2 Electric Heavy Duty Winch is designed for robust performance in all weather conditions. With a running capacity of 10,000 lbs and a 10 HP motor, this winch features a free-spooling drum with adjustable drag and a self-locking worm gear reduction system. Its safety brake ensures automatic mechanical load control, while the steel fabricated base provides maximum durability. Ideal for lifting and pulling applications, this winch includes features like an electrical brake, lever drum controls, and various mounting options for versatile use.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
190 ft.
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
350 ft.
Specifications Line Speed
15 FPM
Specifications Motor
10 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
955 lbs.
Specifications Optional Equipment
Controls to suit application | Electric Motor Brake (recommended for all hoisting applications) | Mechanical Torque Limiter | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling
Specifications Running Capacity Lbs
10000
Specifications Winch Height
21 inches
Specifications Winch Length
47 inches
Specifications Winch Width
21 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Free spooling drum has adjustable dragSelf-locking worm gear reduction - oilbath lubricationAll weather use is ideal for rugged model E2 and A2 winchesSafety brake automatic mechanical load typeAll steel fabricated winch base for maximum durability minimum 5 to 1 structural safety factor
