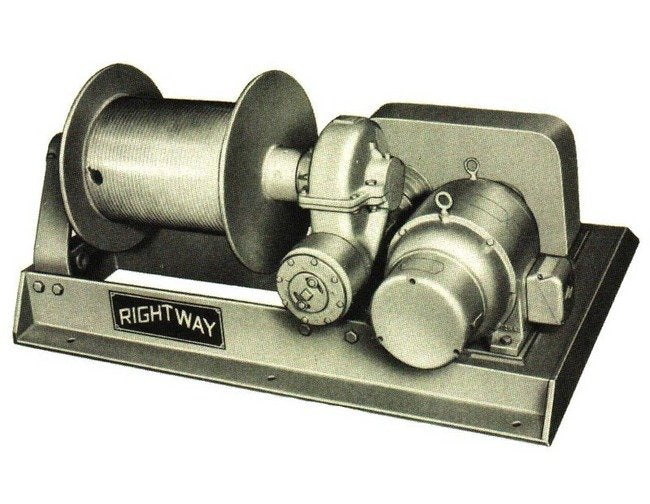

Heavy Duty Electric Winch - Model E4
Heavy Duty Electric Winch - Model E4
SKU:RIG-36d086
Precision engineered for high speed hoisting, the Model E4 Heavy Duty Electric Winch ensures reliability and safety in rugged environments.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E4
$1,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E4
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E4 Heavy Duty Electric Winch is designed for long lift high speed hoisting applications with a precision gearing system and automatic safety brake for mechanical load holding. Featuring a high torque hoist duty motor, this winch ensures reliable performance with a minimum 5 to 1 structural safety factor. With a running capacity of 1000 lbs and advanced features like regenerative lowering and totally enclosed motor, it is ideal for rugged usage. Additionally, it meets stringent institutional procurement standards for durability and safety.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
330 ft.
Specifications Drum Diameter
4 1/2 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
925 ft.
Specifications Line Speed
40 FPM
Specifications Motor
2 1/2 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
385 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
1000
Specifications Standard Wire Rope Diameter
1/4 inches
Specifications Winch Height
16 inches
Specifications Winch Length
49 inches
Specifications Winch Width
16 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
