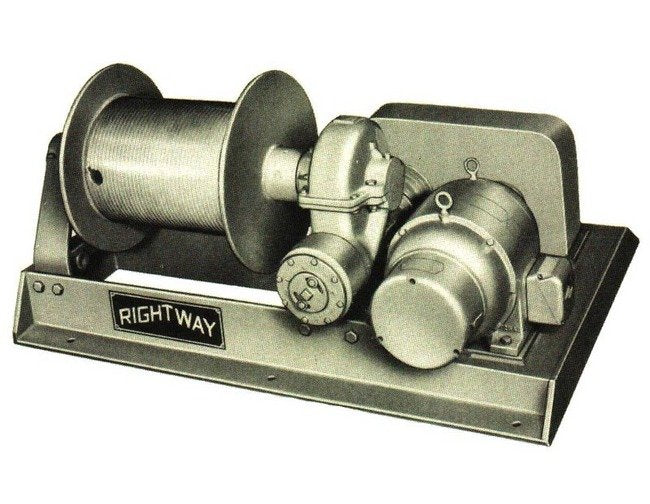

Heavy Duty Electric Winch - Model E4
Heavy Duty Electric Winch - Model E4
SKU:RIG-2cd580
High-speed, heavy-duty hoist with automatic safety features and regenerative lowering. Ideal for rugged applications.
Regular price
$7,399.99
Regular price
Sale price
$7,399.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E4
$7,399.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E4
$7,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E4 Heavy Duty Hoist is designed for long lift high-speed hoisting applications with a large drum diameter that increases wire rope life. Featuring precision gearing, automatic mechanical load holding safety brake, and regenerative lowering for electrically retarded speed, this hoist ensures optimal performance. With a 20 HP motor and a structural safety factor of 5 to 1, it is ideal for rugged conditions. Optional accessories include controls to suit specific applications, grooved drums, and more for enhanced functionality.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
330 ft.
Specifications Drum Diameter
10 3/4 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
900 ft.
Specifications Line Speed
30 FPM
Specifications Motor
20 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1270 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
10000
Specifications Standard Wire Rope Diameter
5/8 inches
Specifications Winch Height
26 inches
Specifications Winch Length
63 inches
Specifications Winch Width
30 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
