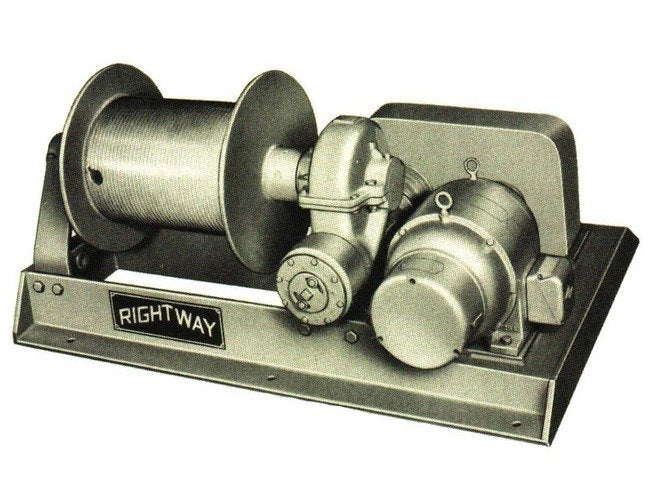

Heavy Duty Electric Winch - Model E4
Heavy Duty Electric Winch - Model E4
SKU:RIG-2f6ef4
Powerful heavy-duty electric winch for high speed hoisting applications, with precision gearing, automatic safety brake, and regenerative lowering capability.
Regular price
$5,799.99
Regular price
Sale price
$5,799.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E4
$5,799.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E4
$5,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E4 Heavy Duty Hoists are designed for long lift high speed hoisting applications with a large drum diameter that increases wire rope life. Equipped with precision gearing, self-locking reduction, and automatic mechanical load holding safety brake, this hoist ensures secure operations. The hoist features a regenerative lowering function for electrically retarded lowering speed and a high torque, fully enclosed motor. With a structural safety factor of minimum 5 to 1, this rugged winch is ideal for all-weather use. Additional features include a 10 HP motor, 30 FPM line speed, and a variety of optional equipment for enhanced performance and safety.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
350 ft.
Specifications Drum Diameter
8 3/4 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
815 ft.
Specifications Line Speed
30 FPM
Specifications Motor
10 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
885 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
6000
Specifications Standard Wire Rope Diameter
1/2 inches
Specifications Winch Height
23 inches
Specifications Winch Length
57 inches
Specifications Winch Width
26 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
