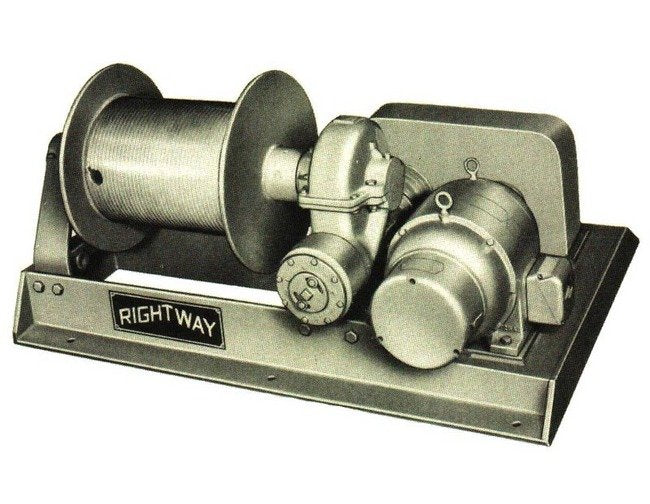

Heavy Duty Electric Winch - Model E4
Heavy Duty Electric Winch - Model E4
SKU:RIG-71537c
Efficient & Durable Heavy Duty Electric Winch for High-Speed Hoisting. Safety-brakes & High-torque Motor. Optional Safety Equipment Available.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E4
$5,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E4
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E4 Heavy Duty Electric Winch is designed for efficiency and durability in long lift high speed hoisting applications. With a running capacity of 7500 lbs and a line speed of 60 FPM, this winch features a large drum diameter that increases wire rope lifespan. The precision gearing, self-locking reduction, and oil bath lubrication ensure smooth operation. Equipped with safety brakes, regenerative lowering, and a high torque motor, this winch is built for rugged use with a minimum 5 to 1 structural safety factor. Optional equipment includes various controls, grooved drums, and safety features like overspeed automatic load holding brake and electric shut-off.
Product Specifications
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum 3 Layers
340 ft.
Specifications Drum Diameter
10 3/4 inches
Specifications Electrical Current
230/460-3-60
Specifications Full Drum
1000 ft.
Specifications Line Speed
60 FPM
Specifications Motor
25 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
1270 lbs.
Specifications Optional Equipment
Controls to suit application | Grooved drums | Overspeed automatic load holding drum brake and electric shut-off | Electric Motor Brake (recommended for all hoisting applications) | Two or more wire ropes off the drum | Slack Line Limit Switch | Travel Limit Switch | Cable Drum Pressure Roller - assists multiple layer reeving evenly onto drum | Mechanical Torque Limiter - automatic reset
Specifications Running Capacity Lbs
7500
Specifications Standard Wire Rope Diameter
9/16 inches
Specifications Winch Height
26 inches
Specifications Winch Length
63 inches
Specifications Winch Width
30 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Standard Features 0
Ideal for long lift high speed hoisting applications Drum large diameter increases wire rope life Precision gearing self-locking reduction oil bath lubricated Safety brake automatic mechanical load holding type Regenerative lowering electrically retarded lowering speed Totally enclosed motor high torque hoist duty motor starting capacity is minimum two (2) times running All weather use is ideal for rugged model E4 winches minimum 5 to 1structural safety factor
