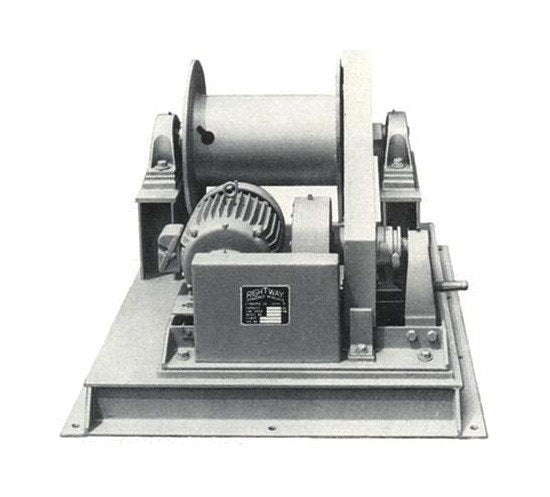

Heavy Duty Electric Winch - Model E5
Heavy Duty Electric Winch - Model E5
SKU:RIG-ab3cdb
Powerful Heavy Duty Electric Winch for industrial lifting and pulling tasks, featuring 20 HP motor, 7500 lbs. capacity, and 55 FPM line speed.
Regular price
$5,499.99
Regular price
Sale price
$5,499.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E5
$5,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E5
$5,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E5 Heavy Duty Electric Winch is a powerhouse designed for industrial applications, featuring a 20 HP motor with high torque crane and hoist duty capabilities. With a capacity full load of 7500 lbs. and a line speed of 55 FPM, this winch is ideal for lifting and pulling tasks. Its durable construction includes a triple reduction self-locking gearing, heavy-duty roller bearing assemblies, and large diameter drums for increased wire rope life. The winch also offers optional equipment such as overspeed automatic load holding drum brake, free spooling drum with adjustable drag brake, torque limiter mechanical clutch, and cable drum pressure roller for enhanced functionality.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
7500
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
12 inches
Specifications Full Drum
850 ft.
Specifications Line Speed
55 FPM
Specifications Motor
20 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
2850 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
41 inches
Specifications Winch Length
66 inches
Specifications Winch Width
52 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
475 ft.
Specifications Wire Rope Size
9/16 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
