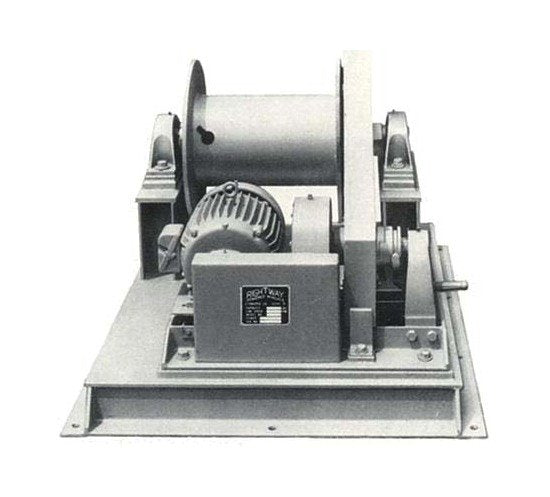

The Model E5 Heavy Duty Industrial Pullers feature a robust design ideal for heavy lifting and pulling tasks. With a 40 HP motor, this winch offers a capacity of 15000 lbs and a line speed of 45 FPM. It boasts a sturdy construction with a triple reduction self-locking gearing system, heavy-duty roller bearings, and a large diameter drum that increases wire rope lifespan. Equipped with standard features like a crane and hoist duty motor, this winch ensures reliable performance in all weather conditions. Optional equipment such as an electrical brake and free spooling drum enhance safety and efficiency, making it a versatile choice for various applications.
Product Specifications
Specifications Capacity Full Load Running
15000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
16 inches
Specifications Full Drum
950 ft.
Specifications Line Speed
45 FPM
Specifications Motor
40 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
5100 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
49 inches
Specifications Winch Length
80 inches
Specifications Winch Width
55 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
450 ft.
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
