Heavy Duty Electric Winch - Model E5 Industrial Pullers
Heavy Duty Electric Winch - Model E5 Industrial Pullers
SKU:RIG-b00eb5
Powerful 30 HP Heavy Duty Electric Winch for industrial lifting and pulling applications. Features self-locking gearing, oversized drums, and enhanced safety mechanisms.
Regular price
$7,499.99
Regular price
Sale price
$7,499.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E5 Industrial Pullers
$7,499.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E5 Industrial Pullers
$7,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

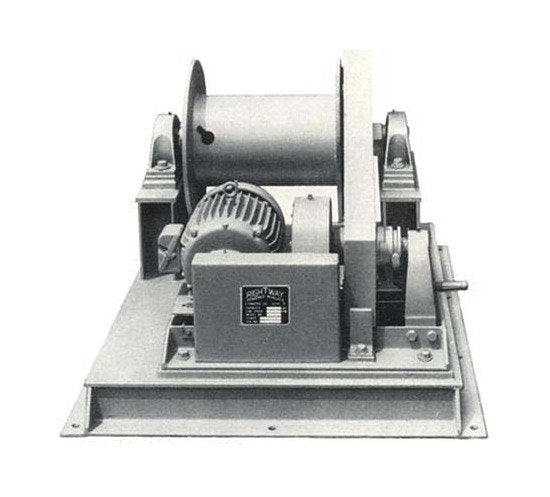

The Model E5 Heavy Duty Industrial Pullers are engineered for maximum performance in industrial settings. With a robust 30 HP motor and a line speed of 35 FPM, these winches boast a heavy-duty construction featuring self-locking gearing, roller bearing assemblies, and large diameter drums to increase wire rope life. The winch offers a wire rope capacity of 950 ft. when fully loaded, making it ideal for lifting and pulling applications. Equipped with optional features like overspeed automatic load holding drum brake and torque limiter mechanical clutch, this winch ensures safe and efficient operations. The Model E5 meets strict industrial standards for durability and safety, with a 5 to 1 structural safety factor.
Product Specifications
Specifications Capacity Full Load Running
15000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
16 inches
Specifications Full Drum
950 ft.
Specifications Line Speed
35 FPM
Specifications Motor
30 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
4950 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
49 inches
Specifications Winch Length
80 inches
Specifications Winch Width
55 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
450 ft.
Specifications Wire Rope Size
3/4 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
