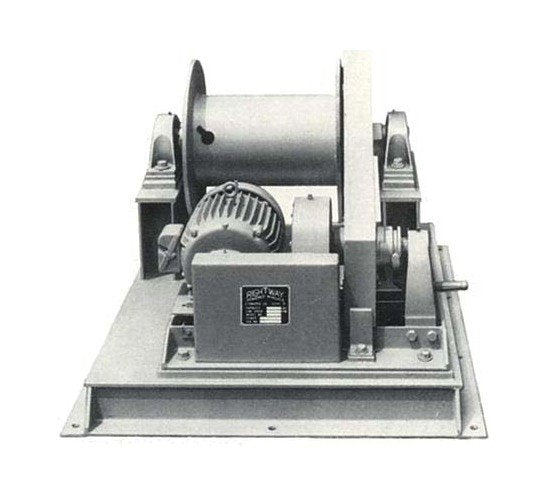

Heavy Duty Electric Winch - Model E5 Puller
Heavy Duty Electric Winch - Model E5 Puller
SKU:RIG-970f37
High-performance Model E5 Electric Winch - 10000 lbs Capacity, 40 FPM Line Speed, 20 HP Motor, All-Weather Use
Regular price
$5,899.99
Regular price
Sale price
$5,899.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch - Model E5 Puller
$5,899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch - Model E5 Puller
$5,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Model E5 Heavy Duty Industrial Pullers are designed for high-performance lifting and pulling tasks. With a Full Load Capacity of 10000 lbs and Line Speed of 40 FPM, this winch is equipped with a 20 HP motor and a 5/8 inches Wire Rope Size. Its triple reduction self-locking gearing and heavy-duty roller bearing assemblies ensure smooth and efficient operation. The winch comes with optional equipment like overspeed automatic load holding drum brake and electric shut-off for enhanced safety. Ideal for all-weather use, the E5 Puller Winch features a large diameter drum that increases wire rope life and a steel fabricated base for maximum durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity Full Load Running
10000
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Drum Diameter
14 inches
Specifications Full Drum
900 ft.
Specifications Line Speed
40 FPM
Specifications Motor
20 HP
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Net Weight
3700 lbs.
Specifications Optional Equipment
Overspeed automatic load holding drum brake and electric shut-off | Free Spooling Drum - has adjustable drag brake | Torque Limiter Mechanical Clutch - automatically resets when excessive pull is released | Cable Drum Pressure Roller - assists multiple layer reeving, keeps wire taut on drum when free spooling or when slack line occurs
Specifications Winch Height
43 inches
Specifications Winch Length
71 inches
Specifications Winch Width
55 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Capacity 3 Layers
475 ft.
Specifications Wire Rope Size
5/8 inches
Standard Features 0
Totally enclosed motor high torque crane and hoist duty motor starting capacity is minimum two (2) times runningPower transmission triple reduction self locking gearingDrum support bearings heavy duty roller bearing assemblies All weather use is ideal for rugged model E5 puller winchLarge diameter drums increases wire rope life All steel fabricated winch base and drum for maximum durability minimum 5 to 1 structural safety factor
