Heavy Duty Electric Winch Sheave Assemblies
Heavy Duty Electric Winch Sheave Assemblies
SKU:RIG-8e55d5
Efficiently lift and pull with our 12000 lbs. capacity Heavy Duty Electric Winch Sheave Assemblies. Versatile controls and secure mounting options for reliable performance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch Sheave Assemblies
$899.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch Sheave Assemblies
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Electric Winch Sheave Assemblies, with a model capacity of 12000 lbs. and a wire rope diameter of 3/4 inches, are expertly designed for efficient lifting and pulling operations. Equipped with an electrical brake and versatile mounting options (horizontal base, inverted ceiling, vertical), these assemblies ensure secure and reliable performance in various applications. The included lever drum and magnetic remote pushbutton controls enhance operational flexibility, making them ideal for precise handling. Compliant with Federal/DoD procurement standards and industry certifications, these sheave assemblies deliver top-tier quality and reliability for institutional and government buyers.
Product Specifications
Specifications Capacity
12000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

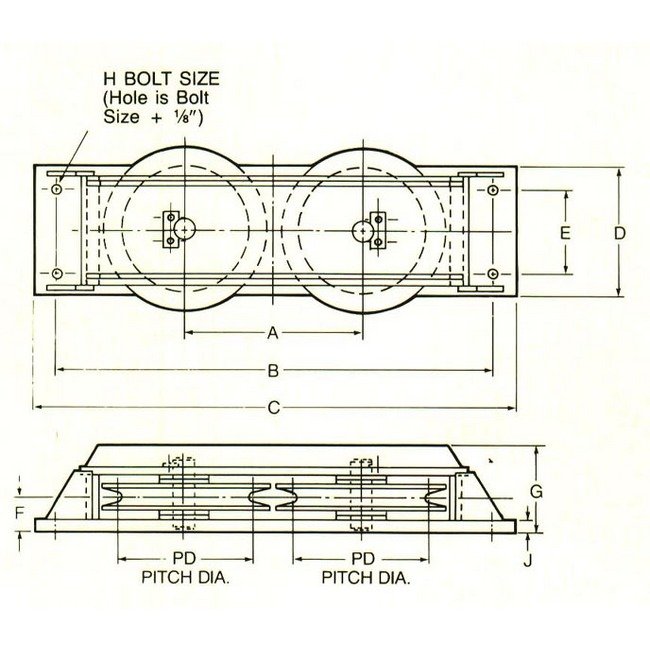

Specifications Dimension A
16 3/4 inches
Specifications Dimension B
34 inches
Specifications Dimension C
38 inches
Specifications Dimension D
14 1/2 inches
Specifications Dimension E
8 1/2 inches
Specifications Dimension F
3 1/8 inches
Specifications Dimension G
9 inches
Specifications Dimension H
1 3/4 inches
Specifications Dimension J
1 1/2 inches
Specifications Model
DHS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
3/4 inches
