Heavy Duty Electric Winch Turnbuckle Assemblies
Heavy Duty Electric Winch Turnbuckle Assemblies
SKU:RIG-7aaae3
Durable Heavy Duty Electric Winch Assemblies for safe and efficient lifting and pulling tasks.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Heavy Duty Electric Winch Turnbuckle Assemblies
$399.99
Quantity: 1
Claim Your Seller Account
Heavy Duty Electric Winch Turnbuckle Assemblies
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Heavy Duty Electric Winch Turnbuckle Assemblies are designed for superior performance in heavy-duty lifting and pulling applications, with a maximum capacity of 4000 lbs. These assemblies feature a durable construction with a wire rope diameter of 7/16 inches, ensuring reliability and safety. With dimensions tailored for optimized functionality and a ratchet takeup of 34 inches, these assemblies are versatile and efficient for various setups. Equipped with essential controls like a lever drum and magnetic remote pushbutton, mounting options for horizontal base, inverted ceiling, or vertical configurations provide flexible installation. Compliant with industry standards, these assemblies guarantee reliability and precision in demanding environments.
Product Specifications
Specifications Capacity
4000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

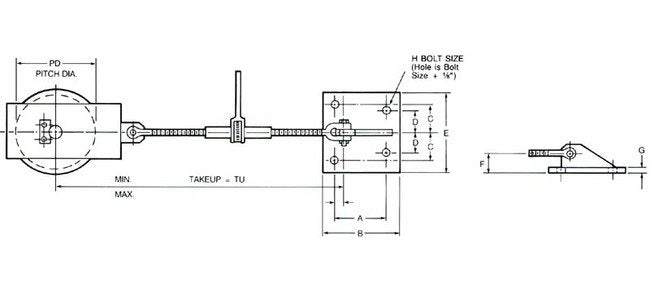

Specifications Dimension A
10 inches
Specifications Dimension B
12 1/2 inches
Specifications Dimension C
3 1/2 inches
Specifications Dimension D
3 inches
Specifications Dimension E
9 1/2 inches
Specifications Dimension F
3 1/2 inches
Specifications Dimension G
3/4 inches
Specifications Dimension H
7/8 inches
Specifications Max Size
86
Specifications Min Size
52
Specifications Model
TTA
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
6 inches
Specifications Ratchet Takeup
34 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
7/16 inches
