Heavy-Duty Electric Winch Turnbuckle Take-Up Assembly - 15000 lbs.
Heavy-Duty Electric Winch Turnbuckle Take-Up Assembly - 15000 lbs.
SKU:RIG-7483ac
Enhance lifting and pulling with our 15000 lbs. Electric Winch Turnbuckle Assembly. Durable, precise adjustments, versatile controls, complies with industry standards.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
Heavy-Duty Electric Winch Turnbuckle Take-Up Assembly - 15000 lbs.
$849.99
Quantity: 1
Claim Your Seller Account
Heavy-Duty Electric Winch Turnbuckle Take-Up Assembly - 15000 lbs.
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your lifting and pulling operations with our Turnbuckle Take-Up Assembly, model TTA, designed for robust performance. With a capacity of 15000 lbs. and a 3/4 inches wire rope diameter, this assembly is engineered for durability and efficiency. Featuring dimensions tailored for optimal functionality, ratchet take-up for precise adjustment, and various control options like lever drum and magnetic remote pushbutton, this assembly ensures versatile usage. It complies with industry standards, making it ideal for institutional and government procurement needs.

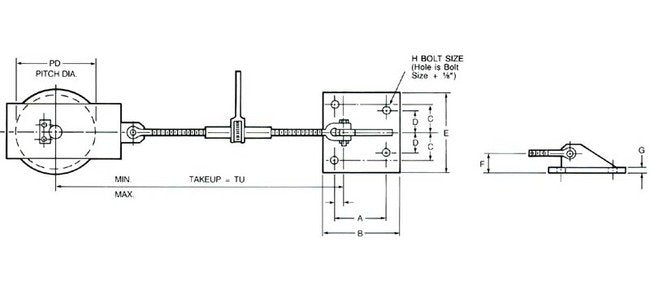

Product Specifications
Specifications Capacity
15000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton
Specifications Dimension A
12 inches
Specifications Dimension B
16 inches
Specifications Dimension C
6 inches
Specifications Dimension D
3 inches
Specifications Dimension E
16 inches
Specifications Dimension F
4 1/2 inches
Specifications Dimension G
1 1/8 inches
Specifications Dimension H
1 1/2 inches
Specifications Max Size
102 1/2
Specifications Min Size
70 1/2
Specifications Model
TTA
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
15 inches
Specifications Ratchet Takeup
32 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
3/4 inches
